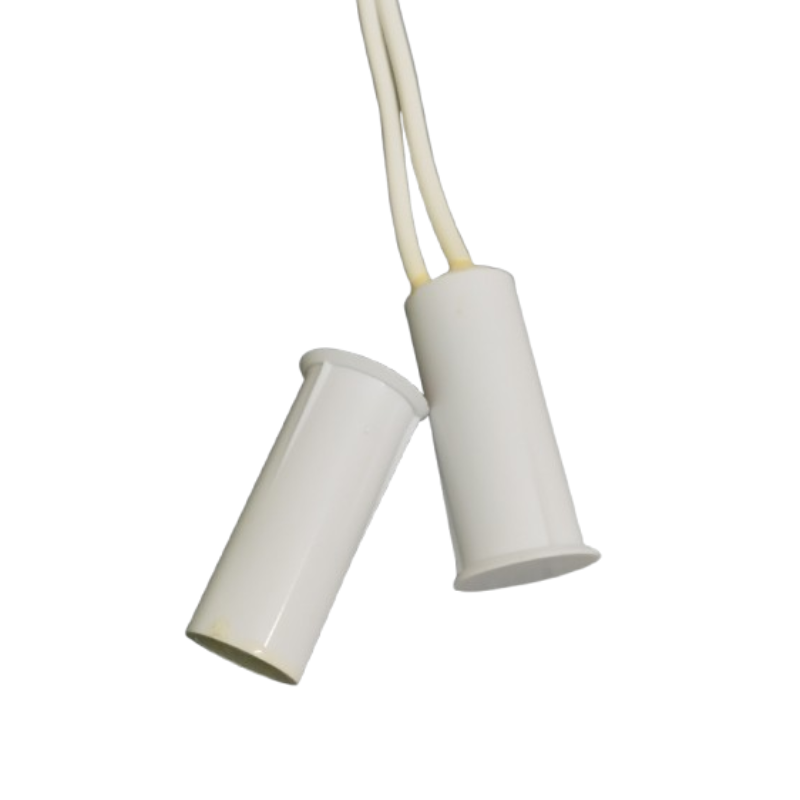

The 1L-MSR-104 Recessed Mount is a high-performance Wardrobe Magnetic Switch specifically designed for applications that require concealed installation, longer sensing distance, and stable electrical performance. Supplied by 1 LEAP Technologies, this model belongs to the recessed mount magnetic switch category and is engineered for industrial and commercial systems where reliability and installation flexibility are critical.

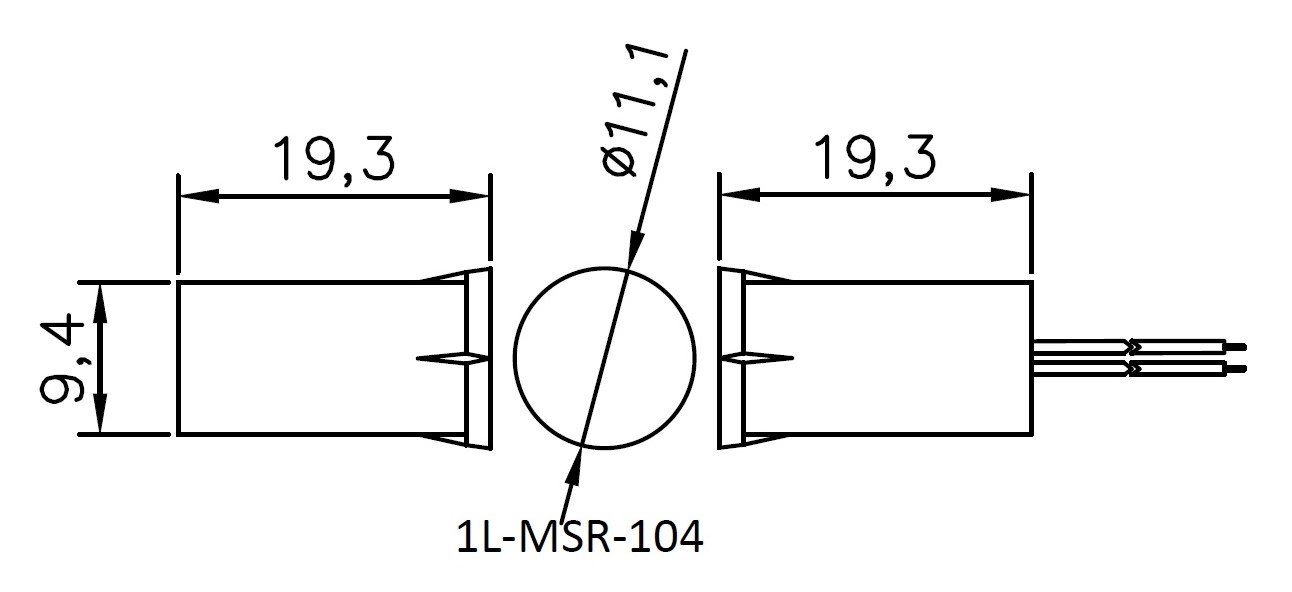

This electronic magnetic switch features a 3/8 inch diameter body, an extended physical length, and 18 inch long wire leads, making it suitable for fixed installations where deeper mounting and longer cable routing are required. The switch is designed to operate with a minimum operate gap of ¾ inch (19mm), allowing consistent magnetic actuation even when the magnet cannot be positioned very close to the sensor.
The 1L-MSR-104 is not intended for compact electronic devices or consumer products. Instead, it is purpose-built for installations where a hard reed switch with extended sensing capability is needed.
Key Features
- 3/8″ Dia with 18″ Long Wire Leads
- Easy & Quick installation
- Longer Length
- Operate Gap ¾” ( 19mm) min.
Wide Operate Gap of ¾” (19mm)
The minimum operate gap of ¾ inch (19mm) is a defining feature of the 1L-MSR-104. This wider operating distance allows reliable magnetic actuation even when perfect alignment between the switch and magnet is not possible.
Such feature is particularly important in applications where mechanical tolerances vary or where the moving part carrying the magnet cannot be positioned extremely close to the sensor. The stable operating gap makes sure the dependable switching without false triggering or missed detection.
Application-Specific Use of 1L-MSR-104
The 1L-MSR-104 Wardrobe Magnetic Switch is designed for applications that require a durable, concealed, and long-distance magnetic sensing solution. Typical application areas include:
- Industrial automation systems
- Control panels and electrical enclosures
- Machine position and limit detection
- Door and panel monitoring in industrial cabinets
- Access and safety systems in commercial installations
Recessed Mount Construction for Secure Installation
The recessed mount design of the 1L-MSR-104 Wardrobe Magnetic Switch allows the switch to be installed inside a precisely drilled cavity. Once installed, the switch remains flush with the mounting surface, ensuring a clean appearance while also protecting the reed contact switch from accidental impact, tampering, or external mechanical stress.
This concealed mounting style makes the switch ideal for environments where surface-mounted sensors are vulnerable or visually undesirable. The longer body length enhances holding strength inside the mounting hole, ensuring that the switch remains firmly in place even in installations exposed to vibration or repeated mechanical movement.
Easy and Quick Installation Process
The 1L-MSR-104 Wardrobe Magnetic Switch is designed for easy and quick installation, making it suitable for both new system builds and retrofitting existing equipment. The recessed mounting structure, combined with the extended wire leads, simplifies placement and electrical connection, reducing overall installation time.
This ease of installation makes the model a practical choice for system integrators, panel builders, and OEMs who require consistent results across multiple installations.
Why Buy From 1 LEAP Technologies?
- ISO 9001:2015 Certified: We manufacture every unit under strict quality control. This ensures maximum operational life for your application.
- Fast Pan-India Shipping: We offer free shipping on orders above ₹1,000 (North Zone) and ₹1,500 across the rest of India.
- Risk-Free Purchase: First-time buyers receive an exclusive discount. In addition, our 7-day easy return policy makes every purchase hassle-free.
