1LPC-01 – Photocell 1 – Day/Night Sensors

Day Night Sensor

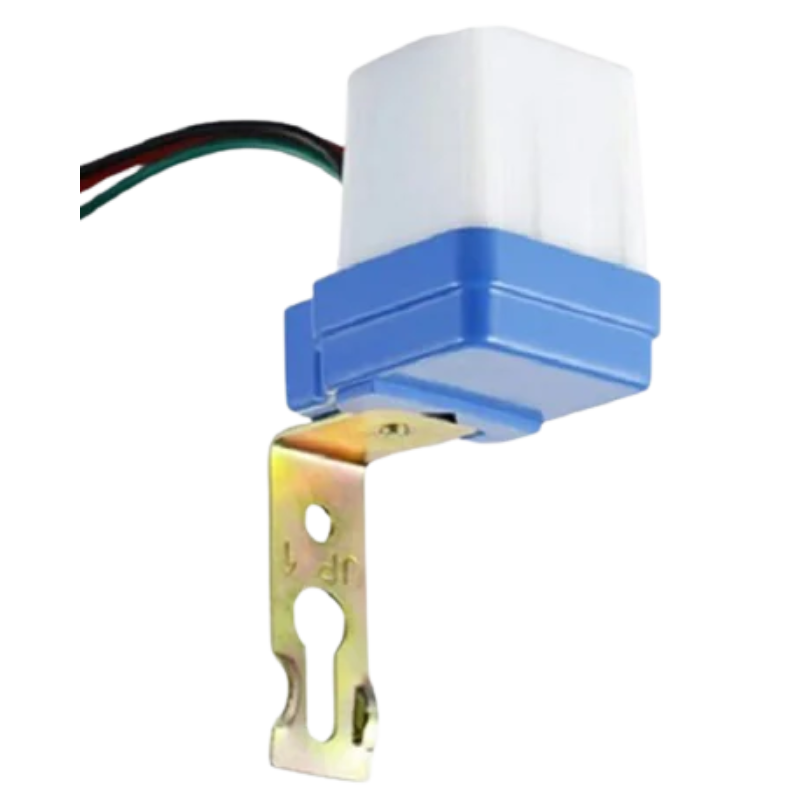

Day Night Sensor- Photocell 1 (10Amp.)

Model No. 1L-PC01

This product can turn ON or turn OFF light automatically according to ambient-light. Ambient temperature and humidity can’t affect it. It is not only convenient but also practical, it can control the load working only at night. It is used for road light, garden light etc.

Model No. 1L-PC01

A photocell is a resistor that changes resistance depending on the amount of light incident on it. A photocell operates on semiconductor photoconductivity: the energy of photons hitting the semiconductor frees electrons to flow, decreasing the resistance.

  • The Sensor is weather proof
  • LUX Level adjustment can be done
  • Can be installed with any light
  • Stand alone 220V AC operation
  • Very easy to Use & Install (DIY)
  • Street Light
  • Garden Light
  • Boundary Light
  • Hoarding Lights
  • Operating Volt: 220-240VAC
  • Power Frequency : 50 Hz
  • Rated Current : 10 Amp.
  • Working Temperature : -20°~+40°C
  • Ambient Light: <5-50 LUX (Adjustable),
  • Load Type: Bulb, LED light, CFL, Halogen Light, etc.,
  • Working Humidity: <93 % RH

Switch off the power.

The product should be installed in a trough. Pull the plastic button at the back of the product, and then put the product into the trough. After that, push the plastic button to lock the product in the trough. Connect the wire with the product as per the Connection-wire diagram…

For detailed installation refer to Installation Manual
