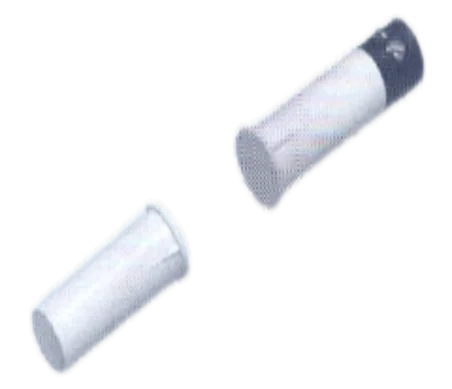

The 1L-MSR-105TB Magnetic Position Switch from 1 LEAP Technologies is a switch designed for recessed mounting applications that demand mechanical stability, extended wiring flexibility, and reliable magnetic actuation over a wider operating gap. This model is engineered specifically for installations where flush mounting, secure terminal connections, and long-term operational reliability are essential.
Unlike surface-mounted or cable-joint based switches, the 1L-MSR-105TB integrates a terminal connector within a compact 3/8″ diameter cylindrical housing, making it suitable for structured industrial assemblies, marine installations, and architectural systems where exposed wiring and protruding components are not acceptable.
Key Features
- 3/8″ Dia with Terminal Connector
- Easy & Quick installation
- No Cable Joints, Better Reliability
- Can use solid or stranded 22 AWG Wire
- Longer Length
- Wide Operate Gap ¾” ( 19mm) min.

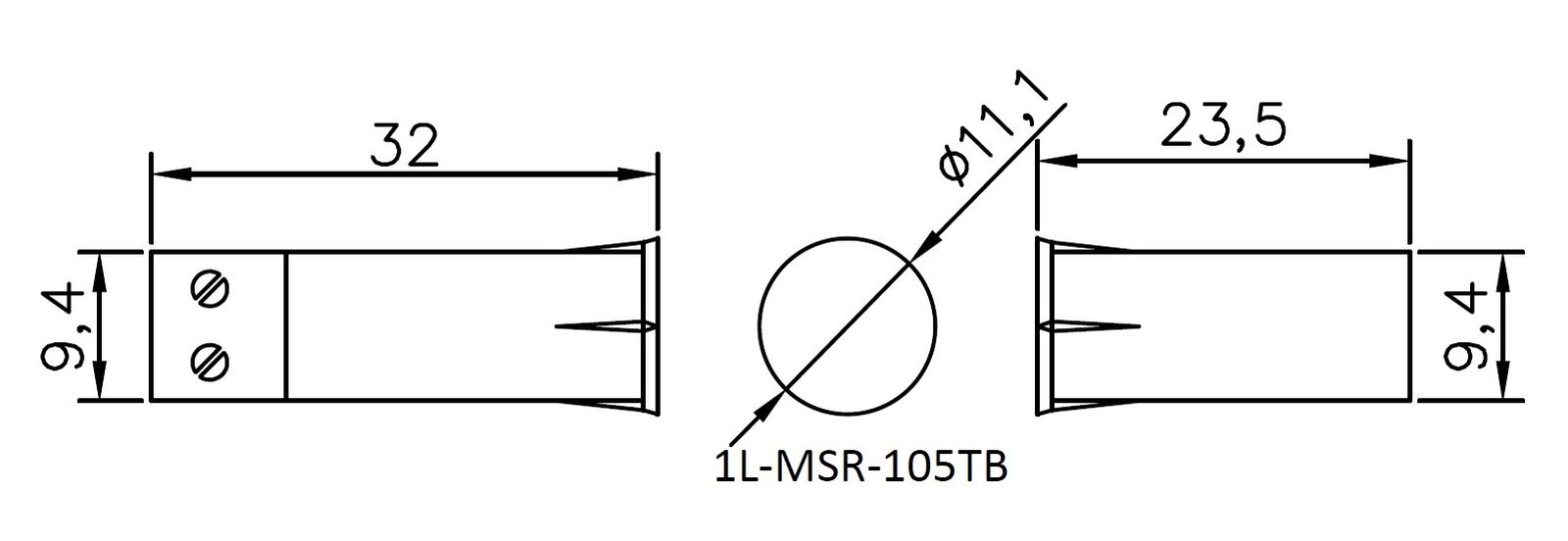

3/8″ Diameter Body with Terminal Connector
The 3/8″ diameter housing is precisely engineered to fit standard recessed mounting dimensions commonly used in industrial and structural applications. This makes sure the compatibility with existing panel designs and reduces installation complexity.
The integrated terminal connector eliminates the need for factory-attached cables. This allows installers to directly connect wiring at the site, reducing material waste and improving flexibility during system integration. The terminal design also ensures a secure electrical connection, which is critical in long-term industrial use.
Supports Solid and Stranded 22 AWG Wire
The terminal connector of the 1L-MSR-105TB is designed to accept both solid and stranded 22 AWG wire, providing flexibility during installation. This allows compatibility with standard industrial wiring practices and ensures seamless integration into existing electrical systems.
This wiring flexibility is particularly beneficial for bulk projects and makes the product a preferred choice for customers looking to buy magnetic position switch for industrial and infrastructure applications.
Shock Resistance – 30G for 11 mSec
The Shock Resistance rating of 30G for 11 milliseconds is intentionally selected for the 1L-MSR-105TB based on its real-world application conditions. This rating ensures that the internal reed element remains stable during sudden mechanical shocks such as door closures, equipment vibration, or structural movement.
This level of shock resistance is ideal for:
- Industrial enclosures and access panels
- Ship interiors and marine structures
- Architectural installations with frequent mechanical operation
The rating strikes the right balance between sensitivity and durability, makes sure the reliable switching without compromising long-term performance.
Application Areas
Industrial Equipment & Control Panels
Used in industrial enclosures, machine guards, access doors, and safety panels where recessed mounting and high reliability are required.
Ship Building & Marine Applications
Suitable for cabin doors, access hatches, equipment compartments, and structural monitoring systems in ship building, where vibration resistance and concealed installation are critical.
Architectural Systems
Widely used in architectural applications such as concealed door sensing, structural panel monitoring, and access control frameworks where clean design and flush mounting are essential.
