Looking for a reliable light-sensitive switch for outdoor automation?
Our 1L-PC02 – 7 Amp Day/Night Photocell Sensor is engineered to automatically switch ON and OFF your lights based on ambient lighting conditions. Designed for energy savings, ease of installation, and all-weather durability, this sensor is ideal for street lights, garden lighting, hoardings, and outdoor spaces.
🔧 Product Overview

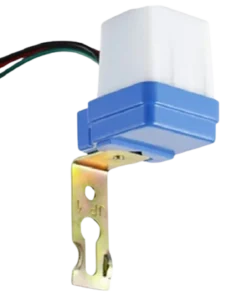

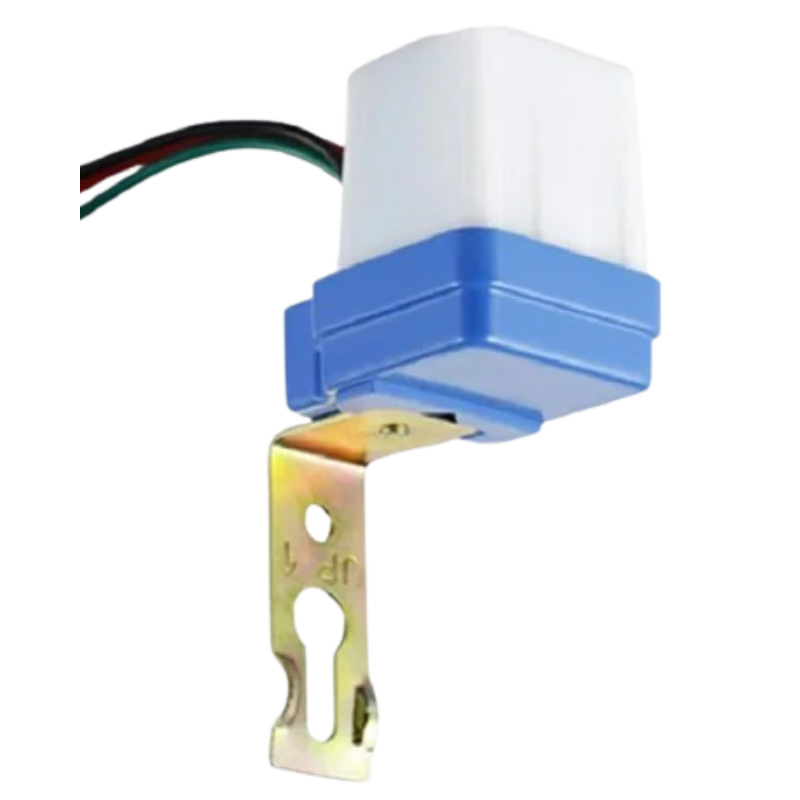

Model Number: 1L-PC02
Type: Day/Night LDR Photocell Sensor
Load Capacity: 7 Amp
Operation: Automatic light detection – turns ON when ambient light is low and OFF when it’s bright.
Application Areas: Suitable for LED, CFL, Bulbs, Halogen Lights, and more.
This sensor uses photoconductivity technology, where a semiconductor changes its resistance based on light intensity. As light falls on the sensor, it allows current to pass and triggers your lighting system—no need for manual intervention.
⭐ Key Features
✅ Weatherproof Design – Operates reliably in all seasons.
✅ Adjustable LUX Sensitivity – Fine-tune light threshold levels for activation.
✅ Wide Compatibility – Works with a variety of lighting types.
✅ Stand-alone 220V AC Operation – No need for extra components.
✅ DIY Friendly – Simple and hassle-free installation.
⚙️ Technical Specifications
| Parameter | Details |
|---|---|
| Operating Voltage | 220–240V AC |
| Frequency | 50 Hz |
| Rated Load Current | 7 Amp |
| Operating Temperature | -20°C to +50°C |
| Ambient Light Threshold | ON: <10 LUX / OFF: >40 LUX |
| Load Compatibility | LED, CFL, Bulb, Halogen, etc. |
| Working Humidity | Up to 93% RH |
🌐 Ideal Applications
🏙️ Street Lighting
🌿 Garden and Landscape Lighting
🧱 Compound Wall / Boundary Lights
📢 Billboard & Hoarding Illumination
Whether you’re upgrading your existing system or starting fresh, this sensor offers cost-effective and automatic lighting control that works the moment the sun goes down.
🛠️ Installation Instructions
Switch OFF the Power before installation.
Mount the Sensor with correct orientation using the included metal bracket.
Connect the Wires as per the wiring diagram.
Avoid placing swinging objects or obstacles in front of the sensor.
💡 Pro Tip: Ensure clear access to daylight for best performance.
📄 Download the Installation Manual (PDF) for detailed wiring and mounting instructions.
