Weather Proof PIR Sensor

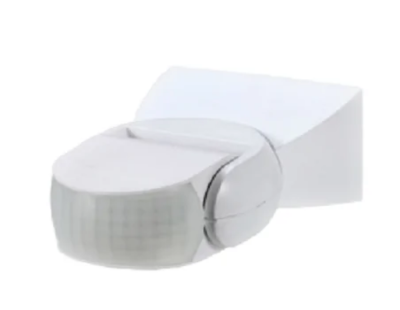

1L-PS08 – Weather Proof PIR Sensor 180° IP65
The 1L-PS08 Weatherproof PIR Sensor seamlessly combines advanced motion-detection intelligence with high-efficiency circuit design to deliver complete automation, safety, and energy savings. By actively utilizing the infrared heat signatures emitted by human movement as its primary control signal, this sensor instantly triggers connected loads the exact moment someone enters its broad detection field. Consequently, you enjoy instant, hands-free illumination without relying on manual light switches.
Furthermore, the unit features an intuitive day/night recognition system that gives you total flexibility over your energy usage. You can easily adjust the ambient light settings to dictate whether the sensor triggers 24/7 or operates strictly during low-light hours and darkness. While installing the unit requires a simple, straightforward setup process, it quickly transforms your property into an automated, highly efficient space. Ultimately, the 1L-PS08 PIR Motion Sensor offers a proven, long-lasting security and lighting solution designed to protect your premises while keeping electricity costs exceptionally low.
Technical Specifications
| Parameter | Technical Detail |
| Operating Voltage | 220–240V AC |
| Power Frequency | 50Hz AC |
| Detection Angle | 180° Wide Coverage |
| Detection Distance | Max. 12 meters (at temperature <24°C) |
| Installation Height | 1.8 m – 2.5 m |
| Ambient Light Range | <3 LUX to 2000 LUX (Fully Adjustable) |
| Time Delay Settings | Min. 10 sec ± 3 sec to Max. 7 min ± 2 min (Adjustable) |
| Rated Load Capacity | Max. 1200W (Resistive) / 300W (Inductive) |
| Power Consumption | Approx. 0.5W (Ultra-Low Standby) |
| Detection Moving Speed | 0.6 m/s to 1.5 m/s |
| Operating Temperature | -20°C to +40°C |
| Working Humidity | <93% RH (Non-condensing) |

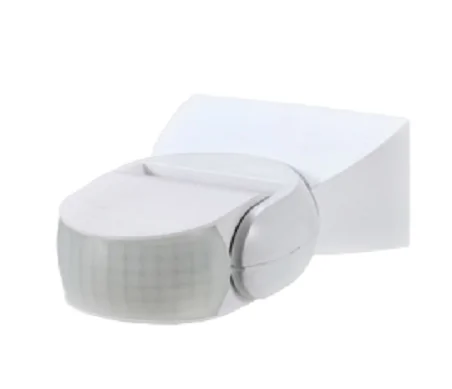

Weather Proof PIR Motion Detector 180° IP65 1L-PS08
Key Features of the 180° Weather Proof PIR Sensor (IP65)
180° Motion Detection: Utilizes a precision infrared lens to detect human movement across a wide 180° angle, delivering broad, reliable coverage across driveways, pathways, and outdoor spaces.
IP65 Weatherproof Rating: Features a heavy-duty, weather-sealed enclosure designed to withstand harsh outdoor elements—including heavy rain, dust, and extreme temperature shifts—for long-term durability both indoors and outdoors.
Built-in Photocell Sensor: Intelligently distinguishes between daylight and darkness, automatically restricting nighttime-only activation to maximize energy savings without manual effort.
LUX & Time Control: Gives you complete freedom to fine-tune ambient light sensitivity and operational time-delay settings—allowing you to configure the unit once for seamless, set-and-forget convenience.
Continuous Re-trigger Function: Automatically resets the delay timer whenever it detects secondary motion within an active cycle, providing continuous, flicker-free illumination as long as the area remains occupied.
Adjustable Time Delay: Allows you to customize operational duration from a brief 10-second test setting ($\pm 3$ sec) up to an extended 7-minute cycle ($\pm 2$ min) based on your specific lighting requirements.
Stand-alone 220V AC Operation: Operates directly on standard 220V–240V AC line power, eliminating the need for external transformers or complex control modules.
DIY-Friendly Installation: Engineered with an accessible mounting plate and straightforward terminal connections, allowing for quick, hassle-free installation for both professional electricians and DIY enthusiasts.
Function
Smart Day & Night Light Sensing: You can easily adjust the LUX control dial to dictate precisely when the sensor activates based on surrounding ambient light conditions.
24/7 Continuous Mode (“Sun” / Max): Setting the dial to the “Sun” position enables the unit to detect motion and trigger connected loads around the clock, operating seamlessly during both bright daylight and total darkness.
Night-Only Energy Saver Mode (“Moon” / Min): Turning the dial toward the “Moon” position restricts activation strictly to low-light environments below 3 LUX, effectively preventing unnecessary daytime power consumption.
Continuous Auto-Reset Time Delay: To guarantee uninterrupted lighting while an area remains occupied, the sensor automatically restarts its delay timer the moment it registers any secondary motion signal during an active cycle. Consequently, it maintains continuous power to your connected loads without sudden shut-offs or flickering.
Note: For step-by-step dial calibration and initial setup instructions, please refer to the Installation Manual
Important Installation & Placement Guidelines
Because PIR motion sensors detect sudden changes in thermal radiation and temperature differentials, improper placement can lead to false triggers or reduced sensitivity. To ensure flawless, long-term performance from your sensor, keep the following installation advice in mind:
Keep Away from Reflective Surfaces: Avoid aiming the detector toward mirrors, polished glass, or highly reflective panels. These surfaces bounce thermal energy and daylight around the room, which can inadvertently trigger false activations.
Maintain Distance from Climate Control & Heat Sources: Do not mount the unit in close proximity to heating vents, air conditioning outlets, high-wattage light fixtures, or radiational heaters. Rapid thermal shifts near these fixtures directly disrupt the sensor's internal calibration.
Avoid Drafts and Moving Objects: Refrain from pointing the lens directly at objects susceptible to breeze or air movement, such as hanging curtains, blinds, or tall indoor plants. Wind-driven motion across these surfaces creates shifting thermal patterns that the sensor may misinterpret as human movement.
Safety Warnings & Installation Procedure
⚠️ DANGER: RISK OF ELECTRIC SHOCK & SEVERE INJURY
Electrical installation must be performed strictly by a qualified, licensed electrician. Always disconnect the main power supply before beginning installation or maintenance to prevent electric shock or equipment damage.
Pre-Installation Safety Steps
Disconnect Main Power: Shut off the primary circuit breaker or isolate the electrical supply feeding the installation area.
Prevent Accidental Re-energization: Secure the breaker box or switch panel to ensure no one can accidentally restore power while you are working.
Verify Zero Voltage: Use a reliable voltage tester on the supply wires to confirm that power is completely disconnected before touching any components.
Isolate Nearby Conductors: Cover or shield any adjacent live electrical components in the junction box or wall cavity to prevent unintended contact.
Step-by-Step Installation Instructions
Step 1: Open the Sensor Housing
Loosen the securing screw located on the bottom base of the unit, then carefully detach the mounting plate from the main sensor body.
Step 2: Route the Wiring
Feed your incoming main power lines and load control wires through the rubber gasket hole on the back of the base plate to maintain weather sealing and wire protection.
Step 3: Wire the Terminals

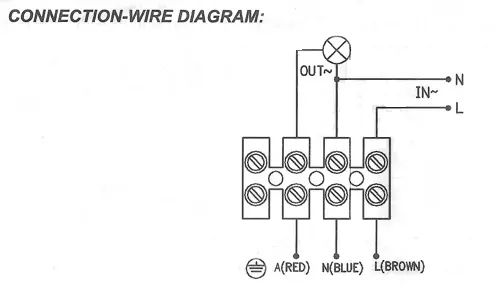

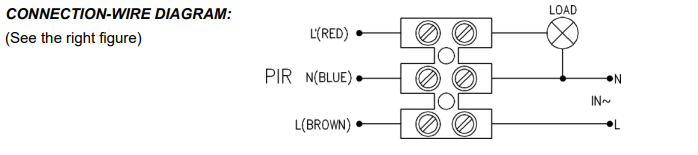

Connect the live, neutral, and load wires securely into the terminal block, following the designated wiring diagram precisely to avoid incorrect operation or short circuits.
Step 4: Mount the Base Plate
Position the backplate against the mounting surface, mark your drilling points, and fix it firmly in place using the provided wall plugs (inflated screws) and mounting hardware.
Step 5: Reassemble and Test
Align the main sensor body back onto the mounted base plate, tighten the locking screw on the bottom to secure it, restore power to the circuit, and proceed with testing the detection settings.
Step-by-Step Testing & Calibration Guide for Weather proof PIR Sensor
Follow this initial testing procedure to verify that your sensor's detection, timer, and light-level settings function correctly before final operation.
Initial Setup & Adjustment Parameters
Set Light Sensitivity (LUX): Turn the LUX control knob fully clockwise to the maximum (Sun) position.
Set Delay Time (TIME): Turn the TIME control knob fully counter-clockwise to the minimum (-) setting (approx. 10 seconds).
Testing Procedure
Warm-Up Phase: Switch on the main electrical power. Neither the connected load (light/appliance) nor the indicator lamp will operate immediately. The unit requires a 30-second warm-up period to calibrate its internal circuits, after which the indicator lamp turns on.
Initial Motion Test: In the absence of any motion signal, the indicator light turns off, and the connected load automatically shuts off within 10 seconds ($\pm 3$ seconds).
Secondary Detection Test: Wait 5 to 10 seconds after the initial load turns off, then step into the sensor's detection zone. The sensor should immediately detect your movement, re-energize the load, and turn off again 10 seconds ($\pm 3$ seconds) after motion stops.
Daylight Sensor (LUX) Test: Turn the LUX knob fully counter-clockwise to the minimum (Moon) setting.
If the ambient light level is above 3 LUX (daylight conditions), the sensor actively blocks activation, keeping the connected load off even when movement occurs.
To test night functionality during the day, cover the detection lens with an opaque object (such as a towel or dark cloth). The sensor should trigger the load, which will then turn off within 10 seconds ($\pm 3$ seconds) after motion ceases under the cover.
📌 Important Testing Notes:
Daylight Testing Requirement: Always ensure the LUX knob is turned to the (SUN) position when testing during daylight hours; otherwise, the sensor will prevent the lamp from illuminating.
Minimum Separation Distance: If the connected lighting load exceeds 60W, maintain a minimum distance of at least 60 cm between the lamp and the sensor lens to prevent heat emitted by the bulb from causing false triggers.

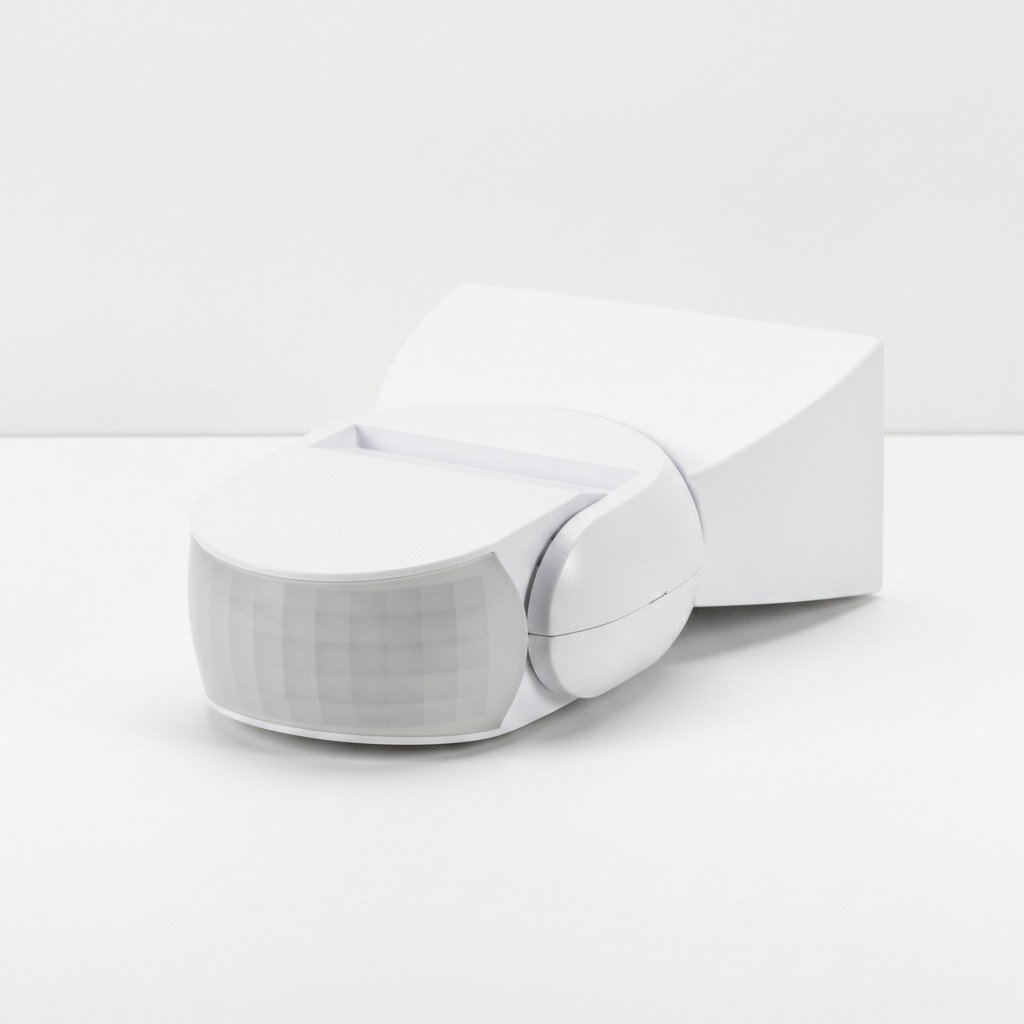

1L-PS08 Weather Proof PIR Sensor– Professional Grade 180° Motion Detection
The 1L-PS08 Infrared Motion Sensor is a high-performance, energy-efficient sensor designed for residential, commercial, and industrial automation needs. Engineered with a sensitive infrared detection module and an optimized integrated circuit, this device makes sure the accurate motion sensing, better automation, and long-term durability.
This Pir Motion Sensor Detector is hugely used in lighting automation, corridor monitoring, security systems, and smart occupancy-based control applications—making it an excellent choice for professionals, electricians, and automation integrators.
Troubleshooting & Problem Resolution Guide
If your sensor isn't performing as expected, use the following guide to diagnose and resolve common operational issues:
1. The Connected Load Does Not Work
Verify Electrical Wiring: Ensure that the main power supply line and the load connection wires are securely wired to the correct terminals according to the wiring diagram.
Inspect the Connected Load: Test the connected lamp or appliance separately to confirm that the load unit itself is functional and not burned out or defective.
Check Ambient Light (LUX) Settings: Confirm whether the LUX setting matches your current environment. If testing in daylight, ensure the LUX knob is adjusted toward the "Sun" position; if set to "Moon," the sensor will deliberately keep the load off in bright lighting.
2. Poor Detection Sensitivity
Clear Optical Obstructions: Inspect the sensor lens window and ensure no physical barriers, covers, or debris block its field of view.
Account for High Ambient Temperature: Note that PIR sensors detect thermal differences. If ambient room temperatures approach body temperature ($\approx 37^\circ\text{C}$), the detection sensitivity naturally decreases.
Verify Sensor Coverage: Confirm that the movement occurs fully within the active detection zone and coverage distance specified for the model.
Check Installation Height: Verify that the sensor is mounted within the recommended height range ($1.8\text{ m} - 2.5\text{ m}$ for wall-mount units or $2.2\text{ m} - 4.0\text{ m}$ for ceiling-mount units).
Evaluate Direction of Motion: PIR sensors detect lateral movement across their detection zones much more effectively than direct movement toward or away from the lens. Ensure the target approach path crosses the sensor's beams horizontally.
3. The Sensor Will Not Shut Off Automatically
Check for Continuous Motion Signals: Ensure no ongoing movement, warm air drafts, swaying curtains, or heat sources (such as HVAC vents or light bulbs) are triggering continuous thermal signals in the detection area.
Verify Time-Delay Setting: Check whether the TIME control knob is set to its maximum duration, which keeps the load energized for up to 7 to 15 minutes after motion stops.
Confirm Load Compatibility: Ensure the total wattage and current draw of your connected load do not exceed the sensor's maximum rated capacity, as overloading can fuse internal relay contacts.
Where 1L-PS08 Weather proof PIR Sensor is Used
Thanks to its heavy-duty IP65 weatherproof casing, exceptional detection accuracy, and fully adjustable day/night functionality, the 1L-PS08 provides a versatile automation solution across diverse indoor and outdoor environments. You can effectively deploy this unit across several key applications:
Residential Spaces: Ideal for illuminating entrance gates, driveways, balconies, staircases, and outdoor garden pathways, providing instant hands-free security whenever residents or guests arrive.
Commercial & Office Buildings: Perfect for automating lighting in high-traffic areas such as main lobbies, hallways, corridors, and customer showrooms—ensuring spaces stay bright while people are present and saving power when they leave.
Parking Facilities & Common Zones: Excellent for covered parking lots, basement garages, and multi-tenant common areas, where continuous lighting would result in massive energy waste.
Hospitality & Facility Management: Broadly used across hotels, resorts, and industrial facilities to streamline energy management by automating outdoor security perimeters and service areas.
Because it delivers exceptionally precise motion tracking, the 1L-PS08 functions seamlessly both as a rugged PIR motion detector for outdoor security and as a highly dependable occupancy sensor for intelligent indoor lighting control.
Installation & Safety Notes
The 1L-PS08 sensor must be installed by a qualified electrician due to high-voltage connections. Avoid placing the sensor near heat sources, reflective surfaces, or moving objects like curtains or plants, as they may affect performance.
Conclusion - Weather Proof PIR Sensor
The 1L-PS08 Weatherproof PIR Motion Sensor stands as a professional, dependable, and highly energy-efficient motion-sensing solution tailored for both residential properties and large-scale industrial facilities. By incorporating advanced detection capabilities, fully customizable Lux and time-delay settings, and automated day/night identification, this unit serves as a vital cornerstone for modern smart building infrastructure. Whether you require a rugged, weatherproof PIR sensor for outdoor security lighting or a reliable occupancy sensor for intelligent indoor energy management, the 1L-PS08 delivers consistent, long-term performance you can trust.
