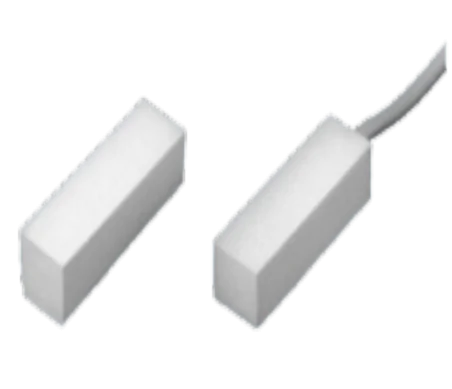

1L-MSM-117 – Surface Mount Magnetic Switch

Surface Mount with Adhesive Tape

Model No. 1L-MSM-117

Key Features

• 3/8″ Surface Mount Contacts with Adhesive Tape
• 18″ Long Wire Leads
• Operating Gap 5/8″ (16mm) min.



Model No. 1L-MSM-117

Surface Mount Magnetic Switches work similar to relays, closing an electrical contact in the presence of a magnetic field. A nearby magnetic field from either an electromagnet or permanent magnet pulls one contact against the other, closing the switch. When the magnetic field is removed, the spring action in the stiff metal contacts opens the connection. Because the thin contacts have low mass, they can operate up to 10 times faster than conventional relays with similar ratings.

• 3/8″ Surface Mount Contacts with Adhesive Tape
• 18″ Long Wire Leads
• Operating Gap 5/8″ (16mm) min.

  • IOT
  • Digital & Mobile Electronics
  • Domestic & White Goods
  • Medical
  • Automotive
  • Construction & Security
  • Robotics & Automation
  • Marine & Weather
  • Sports, Recreation, Hobbies & Toys
  • Contact Rating : 10W/VA
  • Switching Voltage (Max.) : 200 VDC
  • Switching Current (Max.) : 0.5 Amp.
  • Contact Resistance (Min.) : 150 milli ohms
  • Life Expectancy : 10 x 10⁶ Operations
  • Insulation Resistance : 10 9 ohms
  • Shock Resistance : 30G for 11 mSec.
  • Vibration Resistance : 20G ( 10 to 1000Hz)
  • Plastic Material : ABS Plastic (Unless otherwise specified)
