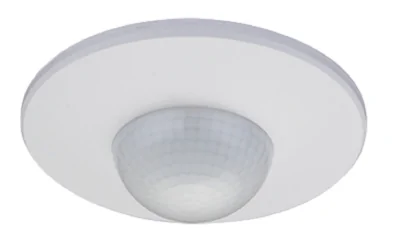

Dual Range Occupancy Sensor Excellence: The 1L-PS041 360° Ceiling Mount Sensor

1 LEAP Technologies introduces the 1L-PS041 dual range occupancy sensor—a sophisticated solution engineered for precision and efficiency. Designed for both micro and macro motion detection, this sensor actively distinguishes between subtle and pronounced movements, ensuring optimal performance across diverse environments.

Unmatched Dual Range Detection

The sensor actively monitors two distinct motion ranges:

• Micro Motion (up to 6 meters): It detects even the slightest movement, making it ideal for securing intimate spaces or areas requiring fine motion sensitivity.
• Macro Motion (6 to 20 meters): It captures broader movements with clarity, ensuring that larger areas receive comprehensive coverage.

By actively differentiating between micro and macro motion, the 1L-PS041 offers tailored monitoring that adapts to the specific needs of your space.

Superior Technical Specifications

The sensor operates on a stable 220-240V/AC power source and runs on a frequency of 50/60Hz. It offers a complete 360° detection range, actively monitoring every angle. Key specifications include:

• Detection Distance: Adjustable from 3 to 20 meters (effective below 24℃)
• Ambient Light Sensitivity: Adjustable from <3 to 2000 LUX, ensuring the sensor activates only when required
• Working Temperature: -20℃ to +40℃
• Time Delay Settings: Ranging from a minimum of 10 seconds (±3 sec) to a maximum of 30 minutes (±2 min)
• Working Humidity: Up to 93% RH
• Power Consumption: Approximately 0.5W
• Rated Load: Up to 2000W (1000W for LED applications)
• Installation Height: Optimal performance between 2.2 and 6 meters
• Detection Motion Speed: 0.6-1.5 m/s

Each specification is meticulously designed to ensure reliable and efficient operation in both residential and commercial settings.

Streamlined Operation and Testing

The 1L-PS041 employs a straightforward operational procedure:

1. Setup: Adjust the LUX knob to the “sun” position (maximum), rotate the TIME knob to the minimum (10 seconds), and set the SENS knob to its maximum.
2. Activation: Power on the device. After a 30-second warm-up period, the sensor actively monitors for motion.
3. Response: Upon detecting motion, it instantly activates the connected lamp. If no further motion occurs, the lamp turns off within 10 seconds (±3 sec).

For low-light conditions, setting the LUX knob to its minimum ensures that the sensor remains inactive in bright environments, thereby conserving energy.

Installation and Best Practices

The sensor actively maintains its performance when installed at the recommended height of 2.2 to 6 meters. To ensure optimal operation:

• Avoid installing near highly reflective surfaces, heat sources, or objects that may move with the wind.
• Verify proper connection of the power source and load.
• Adjust ambient light settings and sensitivity as needed to match environmental conditions.

These best practices enable users to maximize the sensor’s capabilities, ensuring reliable and efficient performance.

Conclusion

The 1L-PS041 stands at the forefront of occupancy sensor technology. By actively leveraging dual range detection, it delivers precision monitoring for both micro and macro motion. This sensor not only enhances security and energy efficiency but also embodies the innovation and reliability that 1 LEAP Technologies is known for. With its active, robust performance and straightforward installation, the 1L-PS041 offers a professional, modern solution grounded in traditional engineering excellence.

Embrace the future of occupancy sensing with a sensor that works as hard as you do.
