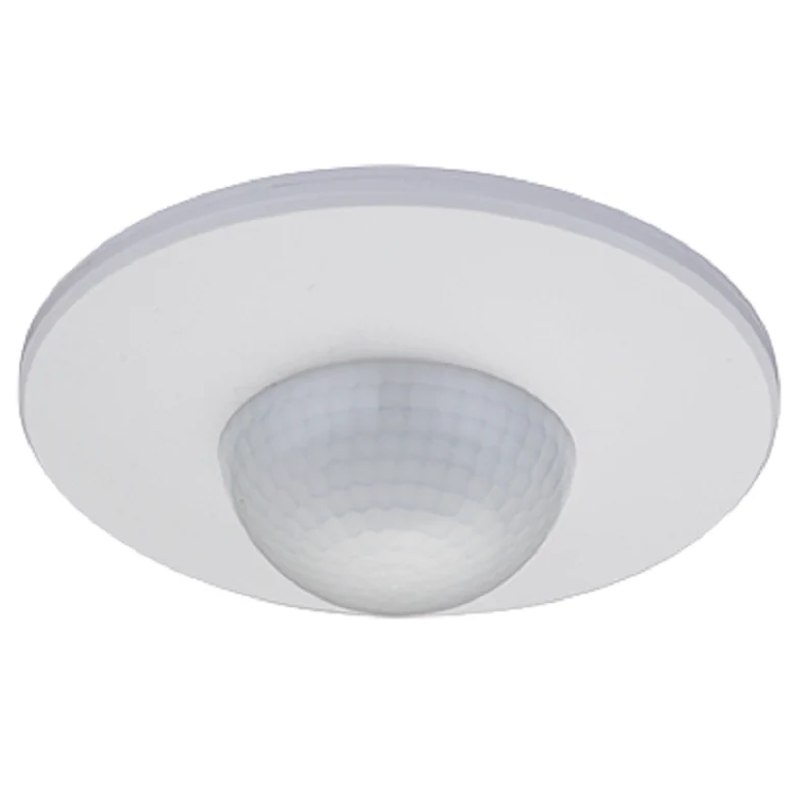

The Ceiling Mount Occupancy Sensor 1L-PS041 is a highly reliable, dual-range motion detection device designed to automate lighting control with maximum efficiency. Using a high-sensitivity infrared detector and integrated circuit technology, makes sure the safety, and energy savings in both residential and commercial spaces.
The product have good sensitivity detector and integrated circuit. This meets the automatism, safety, saving-energy and practical functions. It is a dual range, dual sensor. It uses the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used hugely across industries.
As a trusted Sensor Manufacturer, this product arranged to provide the long-lasting performance with intelligent detection capability. Whether used in homes, offices, hallways, showrooms, warehouses, or educational institutions.
Specification
Power Source: 220-240V/AC
Detection Range: 360º
Power Frequency: 50/60Hz
Detection Distance: 3-20m (<24℃) adjustable
Ambient Light: <3-2000LUX (adjustable)
Working Temperature: -20~+40℃
Time Delay: Min10sec±3sec, Max 30min±2min
Working Humidity: <93%RH Max30min±2min
Power Consumption: approx 0.5W
Rated Load: Max.2000W
Installation Height: 2.2-6m 1000W Detection
Motion Speed: 0.6-1.5m/s
Key Features of Ceiling Mount Occupancy Sensor
It Provides the complete circular detection to makes sure the movements are captured from all angles.
Dual Sensor, Dual Range Technology
Increases indoor automation by using human infrared energy as the activation trigger.
Automatic Day and Night Identification
Modified sensor for adjustable ambient lighting using LUX control. Whether you need the sensor to operate only at night or throughout the day, the 1L-PS041 provides you the complete flexibility
Adjustable Sensitivity
With customizable sensing distance between 3m to 20m, this Occupancy Sensor is suitable for rooms of different sizes—from compact cabins to large halls.
Energy-Saving Smart Delay
The intelligent time-delay feature makes sure that the lights will turn off automatically when the area becomes vacant, preventing unnecessary electricity consumption.
Function of Ceiling Mount Occupancy Sensor
Can identify day and night: The consumer can adjust working state in different ambient light.
It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “3” position (min). As for the adjustment pattern, please refer to the testing pattern.
SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 3m and high sensitivity could be 20m which fits for large room.
Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.
Installation Advice:
As the detector responds to changes in temperature, avoid the following situations:
Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors etc.
Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, light etc.
Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall plants etc.
Why Choose Ceiling Mount Occupancy Sensor 1L-PS041?
Smart home lighting
Office automation
Energy-efficient commercial infrastructure
Staircase and corridor lighting
Retail spaces
Public buildings and washrooms
