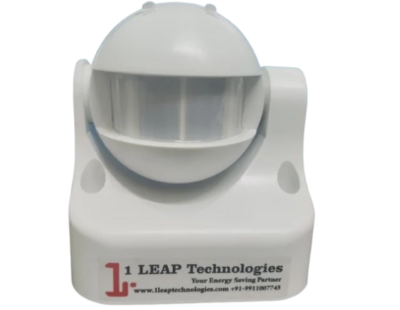

The Wall Mount PIR Sensor 1L-PS10 is a high-quality automation device designed for save energy and increases safety. Using modern infrared technology, this sensor detects human body movement and instantly activates connected loads such as lights, alarms, or automation systems. Whether for residential, commercial, or industrial environments, the 1L-PS10 combines stable performance with huge usability, making it a reliable option for modern automation setups.
This Wall Mount PIR Sensor adopts a high-sensitivity detector and merged with the circuit to provide automatic switching based on human motion. By identifying infrared energy emitted by the human body, the device activates lighting or connected devices immediately upon motion detection. It also differentiates between day and night through adjustable LUX settings, ensuring smart operation and maximum energy efficiency.
Key Features of the 180° Wall Mount PIR Motion Sensor
180° Motion Detection: Engineered to detect motion across a wide 180° field, this sensor provides reliable coverage, ensuring enhanced security and efficiency.
Built-in Photocell: Intelligently detects daylight levels to distinguish between day and night, automatically optimizing energy consumption.
LUX & Time Control: With easy-to-adjust settings, you can customize both light intensity and duration—set it once, let it work, and save energy effortlessly.
Re-trigger Function: Keeps lights on continuously by resetting the timer with every new motion detection, so you never get left in the dark.
Adjustable Time Delay: Choose the perfect timing—from a quick 10-second response (±3 sec) to a steady 7-minute delay (±2 min)—so your lighting adapts to your needs.
Stand-alone 220V AC Operation: No complicated wiring required! Simply plug it in and start saving energy instantly.
DIY-Friendly Installation: Effortlessly install this sensor with user-friendly design, making it the perfect choice for both professionals and DIY enthusiasts who appreciate both simplicity and efficiency.
Function of Wall Mount PIR Sensor 1L-PS10
Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.
SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 5m and high sensitivity could be 12m which fits for large room.
Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basis of the first time-delay reset.
Installation Advice:
As the detector responds to changes in temperature, avoid the following situations:
Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors etc
Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, light etc
Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall plants etc.
