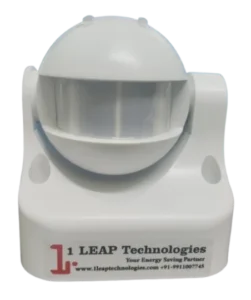

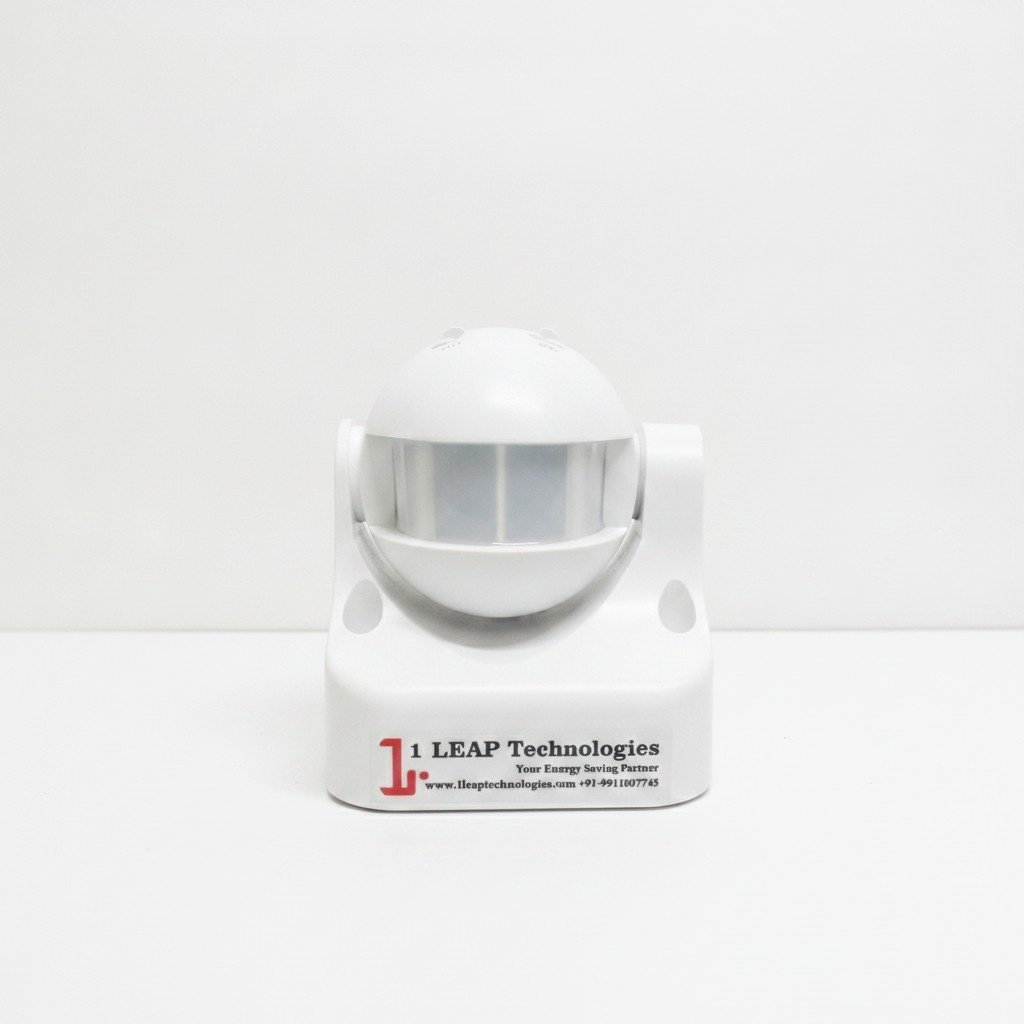

1L-PS10 High-Performance PIR Motion Sensor Detector
The 1L-PS10 PIR Motion Sensor Detector is a high-quality automation device designed for save energy and increases safety. Using modern infrared technology, this sensor detects human body movement and instantly activates connected loads such as lights, alarms, or automation systems. Whether for residential, commercial, or industrial environments, the 1L-PS10 combines stable performance with huge usability, making it a reliable option for modern automation setups.
This Pir Sensor adopts a high-sensitivity detector and merged with the circuit to provide automatic switching based on human motion. By identifying infrared energy emitted by the human body, the device activates lighting or connected devices immediately upon motion detection. It also differentiates between day and night through adjustable LUX settings, ensuring smart operation and maximum energy efficiency.
Additionally, this unit can be used as an Occupancy Sensor, making it suitable for spaces where hands-free control and occupancy-based lighting are important.
Specifications
- Power Source:- 220-240V/AC
- Power Frequency:- 50Hz
- Ambient Light:- <3-2000LUX (adjustable)
- Time Delay:- Min.:10sec±3sec, Max.:7min±2min
- Rated Load:- Max.1200W-300W
- Detection Range:-180°
- Detection Distance:-5-12m (＜24℃) adjustable
- Working Temperature:- -20~+40℃
- Working Humidity:- <93%RH
- Power Consumption:- approx.0.5W
- Installation Height:- 1.8-2.5m
- Detection Moving Speed:- 0.6-1.5m/s
1L-PS10 – Wall Mount PIR Motion Sensor 180°
Original price was: ₹550.00.₹450.00Current price is: ₹450.00. (+18% GST extra)
LC-200 PIR Motion Detector with Pet Immunity
Original price was: ₹2,000.00.₹1,450.00Current price is: ₹1,450.00. (+18% GST extra)
PIR Sensor QS-05B
Original price was: ₹400.00.₹360.00Current price is: ₹360.00. (+18% GST extra)Key Features of the 180° Wall Mount PIR Motion Sensor
- 180° Motion Detection: Engineered to detect motion across a wide 180° field, this sensor provides reliable coverage, ensuring enhanced security and efficiency.
- Built-in Photocell: Intelligently detects daylight levels to distinguish between day and night, automatically optimizing energy consumption.
- LUX & Time Control: With easy-to-adjust settings, you can customize both light intensity and duration—set it once, let it work, and save energy effortlessly.
- Re-trigger Function: Keeps lights on continuously by resetting the timer with every new motion detection, so you never get left in the dark.
- Adjustable Time Delay: Choose the perfect timing—from a quick 10-second response (±3 sec) to a steady 7-minute delay (±2 min)—so your lighting adapts to your needs.
- Stand-alone 220V AC Operation: No complicated wiring required! Simply plug it in and start saving energy instantly.
- DIY-Friendly Installation: Effortlessly install this sensor with user-friendly design, making it the perfect choice for both professionals and DIY enthusiasts who appreciate both simplicity and efficiency.
Function
- Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.
- SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 5m and high sensitivity could be 12m which fits for large room.
- Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basis of the first time-delay reset.
Installation Advice:
As the detector responds to changes in temperature, avoid the following situations:
- Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors etc
- Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, light etc
- Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall plants etc.
Connection
Warning:-
- Warning, Danger of death through electric shock!
- Must be installed by professional electrician
- Disconnect power source
- Cover or shield any adjacent live components
- Ensure device cannot be switched on
- Check power supply is disconnected
- Screw off the nail on the front cover and unload the front cover. (refer to figure1).
- Find the wire hole with gasket in the bottom and pass the power wire through hole.
- Fix the bottom on the selected position with the inflated screw (refer to figure 2).

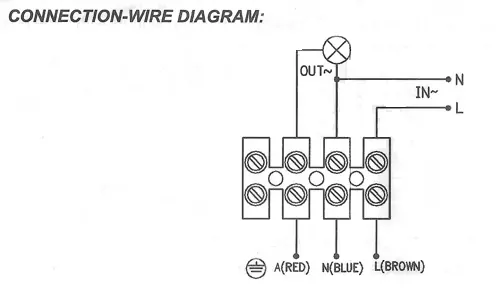

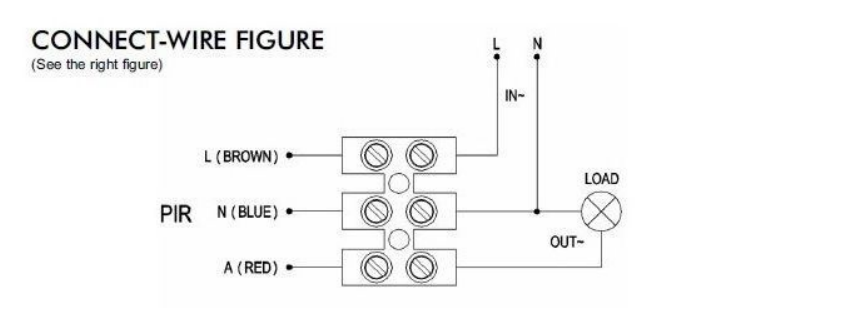

- Connect the power wire into connection-wire column according to the connection-wire diagram.
Install back the front cover, tighten the screw and switch on the power. Then you can test it.
Test
- Turn the LUX knob clockwise on the maximum (sun). Turn the TIME knob anti-clockwise on the minimum. Turn the SENS knob clockwise on the maximum
- Switch on the power; the load and the indicator lamp don’t work. After Warm-up 30sec, the indicator lamp turns on. Under the condition of no sense signal, the load should stop working within 10sec±3sec and the indicator lamp would turn off
- After the first induction is out, make it sense again after 5~10sec. The load should work again. when no sense signal, the load should stop working within10sec±3sec.
- Turn LUX knob anti-clockwise on the minimum (moon). If the ambient light is more than 3LUX, the indicator load should not work after the load stop working. If you cover the detection window with the opaque objects (towel etc), the load would work. Under no induction signal condition, the load should stop working within 10sec±3sec.
- Note: when testing in daylight, please turn LUX knob to (SUN) position, otherwise the sensor lamp could not work! If the lamp is more than 60W, the distance between lamp and sensor should be 60cm at least
Troubleshooting and Solutions:
The load do not work:
- Please check the connection-wiring of power and load is correct.
- Please check the load is good.
- Please check if the working light sets correspond to ambient light.
The sensitivity is poor:
- Please check if there has any hindrance in front of the detection window to affect to receive the signal.
- Please check if the ambient temperature is too high.
- Please check the induction signal sources in the detection fields.
- Please check if the installation height corresponds to the height showed in the instruction
- Please check if the moving orientation is correct.
The sensor can not shut off the load automatically
- Check for continuous signals in the detection field.
- Adjust the time delay setting if it is at the maximum.
- Verify that the power supply matches the specified requirements.
- Install the sensor at the recommended height as per the instructions.
Installation Guidance
The sensor must be installed by a professional electrician. As it is highly responsive to temperature differences, it should not be placed near heat sources, reflective surfaces, cooling vents, or moving objects like curtains or plants. Proper installation makes sure an accurate functioning as a dependable Occupancy Sensor.
Why Choose the 1L-PS10 PIR Motion Sensor Detector?
- Excellent energy savings
- Wide 180° detection area
- Adjustable detection range up to 12 meters
- Ideal for homes, offices, corridors, warehouses, parking areas, and commercial buildings
- Works as both a Pir Sensor and an effective Occupancy Sensor
Whether you’re automating indoor lighting or increasing the safety around your premises, the 1L-PS10 provides performance, longevity, and a modern functionality.
