1L-PS041 PIR Occupancy Sensor — Advanced 360° Detection for Smart Energy Savings
The 1L-PS041 PIR Occupancy Sensor is a highly reliable, dual-range motion detection device designed to automate lighting control with maximum efficiency. Using a high-sensitivity infrared detector and integrated circuit technology, makes sure the safety, and energy savings in both residential and commercial spaces.
As a trusted Sensor Manufacturer, this product arranged to provide the long-lasting performance with intelligent detection capability. Whether used in homes, offices, hallways, showrooms, warehouses, or educational institutions.

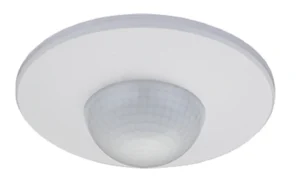

1L-PS041 – 360° Ceiling Mount Occupancy Sensor
Original price was: ₹1,800.00.₹1,600.00Current price is: ₹1,600.00. (+18% GST extra)Installation Height & Range of Occupancy Sensor
Installation Manual
The product have good sensitivity detector and integrated circuit. This meets the automatism, safety, saving-energy and practical functions. It is a dual range, dual sensor. It uses the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.
Specification
- Power Source: 220-240V/AC
- Detection Range: 360º
- Power Frequency: 50/60Hz
- Detection Distance: 3-20m (<24℃) adjustable
- Ambient Light: <3-2000LUX (adjustable)
- Working Temperature: -20~+40℃
- Time Delay: Min10sec±3sec
- Working Humidity: <93%RH Max30min±2min
- Power Consumption: approx 0.5W
- Rated Load: Max.2000W
- Installation Height: 2.2-6m 1000W Detection
- Motion Speed: 0.6-1.5m/s
Function:
Can identify day and night: The consumer can adjust working state in different ambient light.
It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “3” position (min). As for the adjustment pattern, please refer to the testing pattern.
SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 3m and high sensitivity could be 20m which fits for large room.
Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.

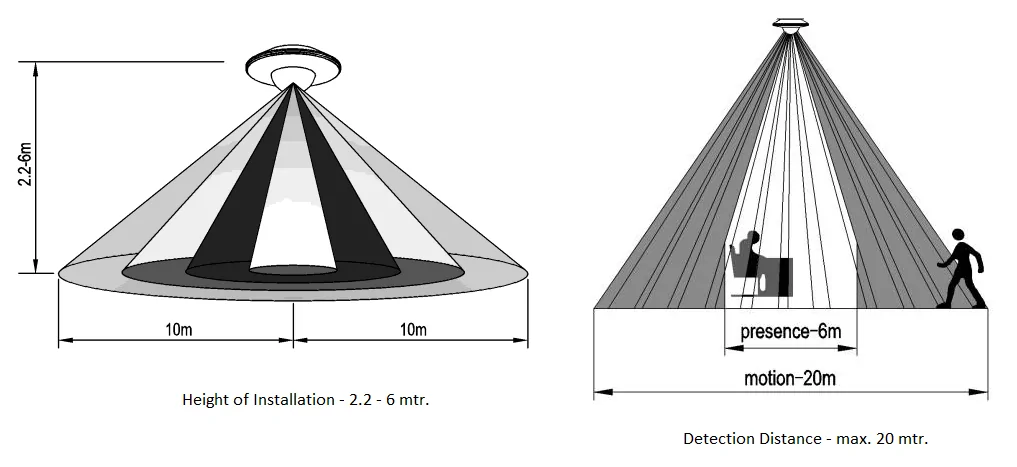

Sensor Information:
Height of installation: 2.2-6m
Detection Distance: max.20m
Installation Advice:
As the detector responds to changes in temperature, avoid the following situations:
- Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors etc.
Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, light etc.
Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall plants etc.
Connection
- Warning. Danger of death through electric shock!
- Must be installed by professional electrician.
- Disconnect power source
- Cover or shied any adjacent live components.
- Ensure device cannot be switched on
- Check power supply is disconnected
- Please move the upper cover with anti-clockwise whirl as per the diagram on the right
- Connect the power and the load according to the connection-wire diagram.
- Fix the bottom on the selected position with the inflated screw
- Install back the upper cover on the sensor, then you could switch on the power and test it
Test Procedure:
- Turn the LUX knob clockwise on the maximum (sun).Turn the TIME knob anti-clockwise on the minimum (10s). Turn the SENS knob clockwise on the maximum (+).
- Switch on the power; the sensor and its connected lamp will have no signal at the beginning. After Warm-up 30sec, the sensor can start work .If the sensor receives the induction signal, the lamp will turn on. While there is no another induction signal any more, the load should stop working within 10sec±3sec and the lamp would turn off.
- Turn the LUX knob counterclockwise to the minimum (3) position. If the ambient light exceeds 3LUX, the sensor will not activate, and the lamp will remain off. If the ambient light is less than 3LUX (darkness), the sensor will activate. With no further motion detection, the sensor will stop working, and the lamp will turn off within 10s ± 3s.
- Turn LUX knob anti-clockwise on the minimum (3). If the ambient light is more than 3LUX, the sensor would not work and the lamp stop working too. If the ambient light is less than 3LUX (darkness), the sensor would work. Under no induction signal condition, the sensor should stop working within 10sec±3sec.
- Note: when testing in daylight, please turn LUX knob to (SUN) position, otherwise the sensor lamp could not work!
Note: When testing in daylight, ensure the LUX knob is set to the “sun” position, or the sensor may not activate the lamp.
Troubleshooting and Solutions:
Load Not Functioning:
- Please check if the connection of power source and load is correct.
- Please check if the load is good.
- Please check if the settings of working light correspond to ambient light.
Weak Sensitivity
- Please check if there is any hindrance in front of the detector to affect it to receive the signals.
- Please check if the ambient temperature is too high.
- Please check if the induction signal source is in the detection field
- Please check if the installation height corresponds to the height required in the instruction
- Please check if the moving orientation is correct.
Sensor Fails to Turn Off the Load Automatically:
- Please check if there is continual signal in the detection field.
- Please check if the time delay is set to the maximum position
- Please check if the power corresponds to the instruction
Key Features of the 1L-PS041 Occupancy Sensor
Key Features of the 1L-PS041 Occupancy Sensor
It Provides the complete circular detection to makes sure the movements are captured from all angles.
Dual Sensor, Dual Range Technology
Increases indoor automation by using human infrared energy as the activation trigger.
Automatic Day and Night Identification
Modified sensor for adjustable ambient lighting using LUX control. Whether you need the sensor to operate only at night or throughout the day, the 1L-PS041 provides you the complete flexibility
Adjustable Sensitivity
With customizable sensing distance between 3m to 20m, this Occupancy Sensor is suitable for rooms of different sizes—from compact cabins to large halls.
Energy-Saving Smart Delay
The intelligent time-delay feature makes sure that the lights will turn off automatically when the area becomes vacant, preventing unnecessary electricity consumption.
Installation Guidance
The sensor must be installed by a professional electrician for complete safety. Avoid positioning the device near reflective surfaces, heat sources, or objects that sway in the wind. Proper installation make sure the perfect sensitivity and long service life.
Why Choose the 1L-PS041?
This Occupancy Sensor is an ideal solution for:
- Smart home lighting
- Office automation
- Energy-efficient commercial infrastructure
- Staircase and corridor lighting
- Retail spaces
- Public buildings and washrooms
Because of its huge compatibility and durable build, it is often recommended by experts looking for reliable sensing performance.
Looking for a Trusted Delhi-Based Supplier?
If you are searching for an Occupancy Sensor with IR Remote Dealer in Delhi, this product is hugely distributed by reliable partners who specialize in automation and sensor-based control systems. Combined with strong manufacturer support, it makes sure the perfect integration into any building project.
Your Reliable Sensor Manufacturer
As an experienced Sensor Manufacturer, of 1L-PS041 provide industry-grade engineering, quality guarantee, and long life of products. With decades of expertise, they give higher-productivity lighting automation into the modern infrastructure.
