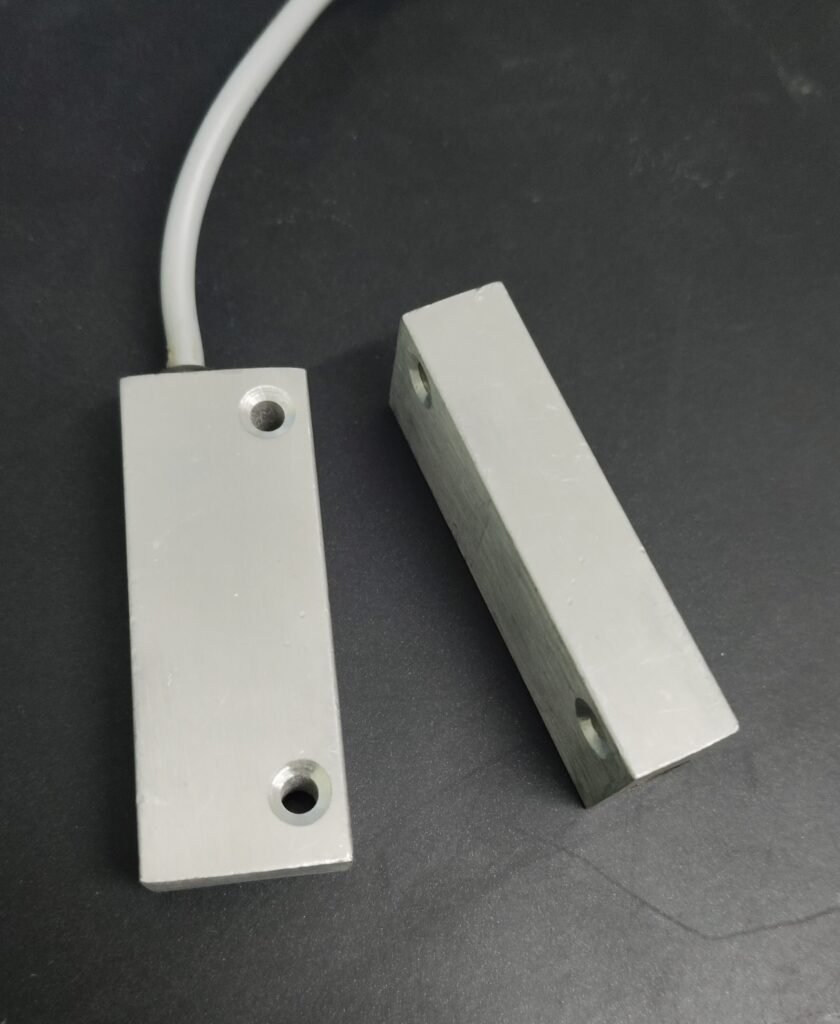

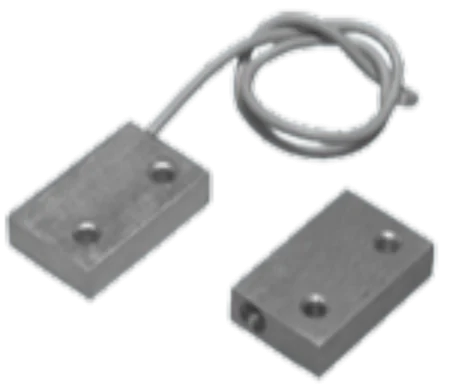

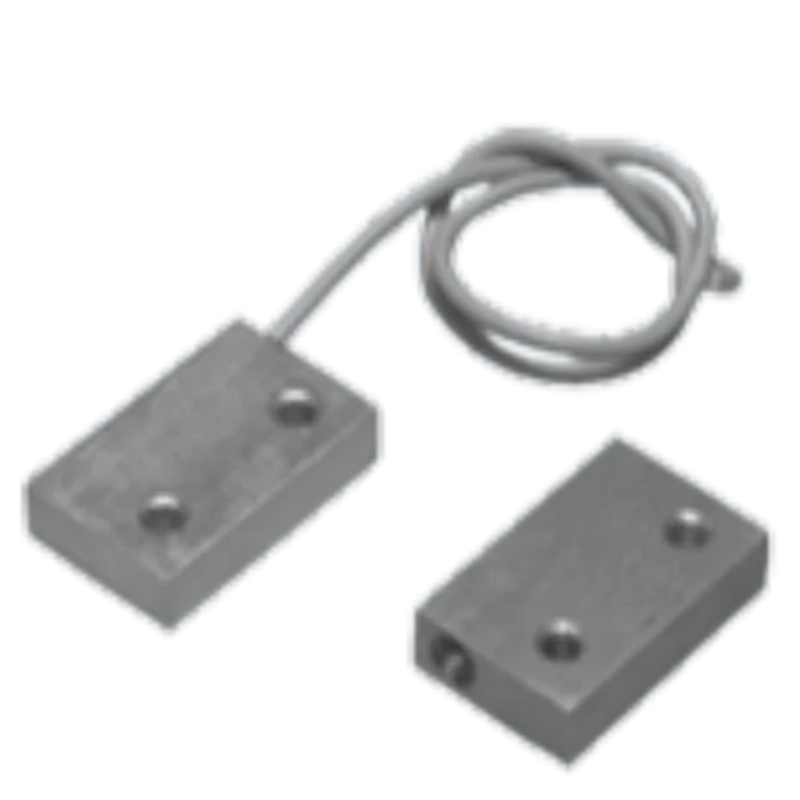

Aluminium Housing Special Type Magnetic Switch
Model No. 1L-MSS-101
Key Features
• Rugged Aluminium Housing
• Suitable For Steel Doors or any other Hazardous Application
• 18″ Long 2 Core Cable
• Stainless Steel Armored Cable available on request

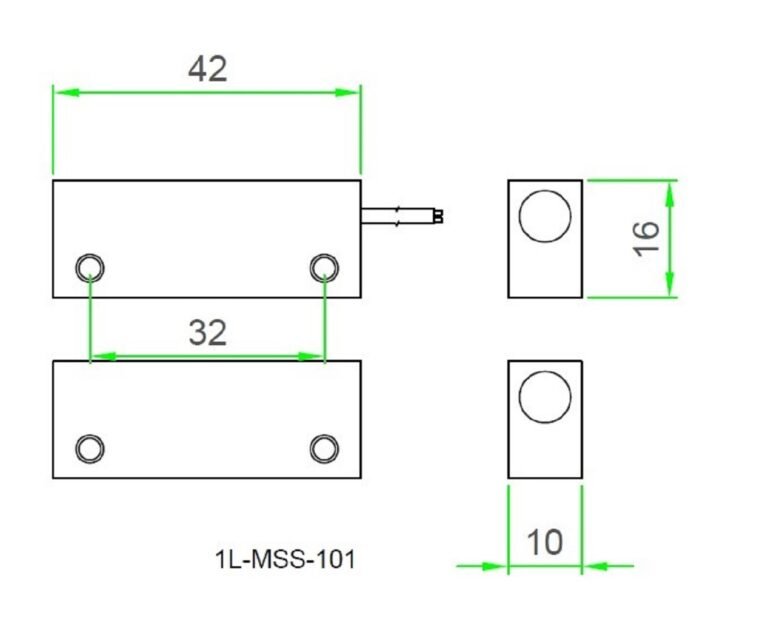

Model No. 1L-MSS-101
Surface Mount Magnetic Switches work similar to relays, closing an electrical contact in the presence of a magnetic field. A nearby magnetic field from either an electromagnet or permanent magnet pulls one contact against the other, closing the switch. When the magnetic field is removed, the spring action in the stiff metal contacts opens the connection. Because the thin contacts have low mass, they can operate up to 10 times faster than conventional relays with similar ratings.
• Rugged Aluminium Housing
• Suitable For Steel Doors or any other Hazardous Application
• 18″ Long 2 Core Cable
• Stainless Steel Armored Cable available on request
- IOT
- Digital & Mobile Electronics
- Domestic & White Goods
- Medical
- Automotive
- Construction & Security
- Robotics & Automation
- Marine & Weather
- Sports, Recreation, Hobbies & Toys
- Contact Rating : 10W/VA
- Switching Voltage (Max.) : 200 VDC
- Switching Current (Max.) : 0.5 Amp.
- Contact Resistance (Min.) : 150 milli ohms
- Life Expectancy : 10 x 10⁶ Operations
- Insulation Resistance : 10 9 ohms
- Shock Resistance : 30G for 11 mSec.
- Vibration Resistance : 20G ( 10 to 1000Hz)
- Plastic Material : ABS Plastic (Unless otherwise specified)
