3/8″ (9mm) dia. with Wire Leads (Short)

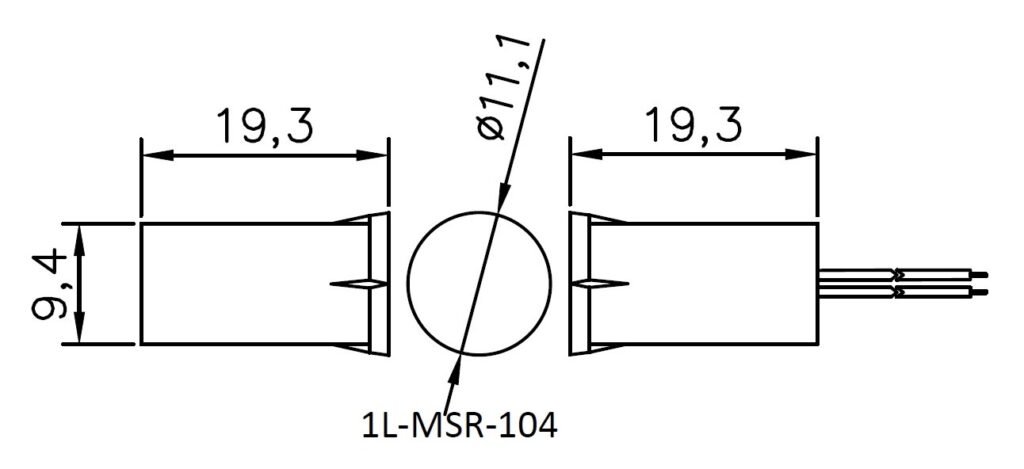

Model No. 1L-MSR-104
Key Features
• 3/8″ Dia with 18″ Long Wire Leads
• Easy & Quick installation
• Longer Length
• Operate Gap ¾” ( 19mm) min.
Model No. 1L-MSR-104
Recessed Mount Magnetic Switches work similar to relays, closing an electrical contact in the presence of a magnetic field. A nearby magnetic field from either an electromagnet or permanent magnet pulls one contact against the other, closing the switch. When the magnetic field is removed, the spring action in the stiff metal contacts opens the connection. Because the thin contacts have low mass, they can operate up to 10 times faster than conventional relays with similar ratings.
• Recessed Mount Type
• 3/8″ Dia with 18″ Long Wire Leads
• Easy & Quick installation
• Longer Length
• Operate Gap ¾” ( 19mm) min.
- IOT
- Digital & Mobile Electronics
- Domestic & White Goods
- Medical
- Automotive
- Construction & Security
- Robotics & Automation
- Marine & Weather
- Sports, Recreation, Hobbies & Toys
- Contact Rating : 10W/VA
- Switching Voltage (Max.) : 200 VDC
- Switching Current (Max.) : 0.5 Amp.
- Contact Resistance (Min.) : 150 milli ohms
- Life Expectancy : 10 x 10⁶ Operations
- Insulation Resistance : 10 9 ohms
- Shock Resistance : 30G for 11 mSec.
- Vibration Resistance : 20G ( 10 to 1000Hz)
- Plastic Material : ABS Plastic (Unless otherwise specified)
