Surface Mount Magnetic Switch

1 LEAP Technologies stands out as a leader in Surface Mount Magnetic Switch. Our highly skilled and experienced team consistently delivers top-quality products to meet client needs. We ensure every product undergoes rigorous quality checks, guaranteeing optimal performance before leaving our warehouse. By prioritizing innovation, reliability, and customer satisfaction, we have become a preferred choice for magnetic switching solutions across industries.

We offer a variety of Surface Mount Magnetic Switches to meet different needs:

Surface mount magnetic switch install easily on doors, windows, or equipment surfaces, eliminating the need for drilling or recessing. This makes them ideal for tight spaces and security applications. 1 LEAP enhances versatility by offering these switches in NO (Normally Open), NC (Normally Closed), and 3-wire changeover types, ensuring compatibility with a wide range of application requirements.

Surface Mount Magnetic Switch Models:

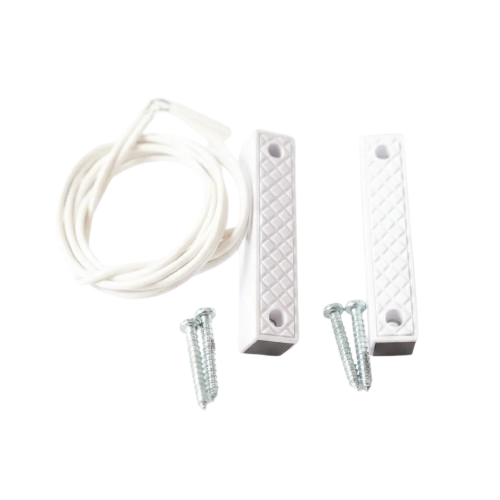

• 1L-MSM-111: Surface Mount with Wire Leads
• 1L-MSM-112: Side Flange Mount with/without self-adhesive and Wire Leads

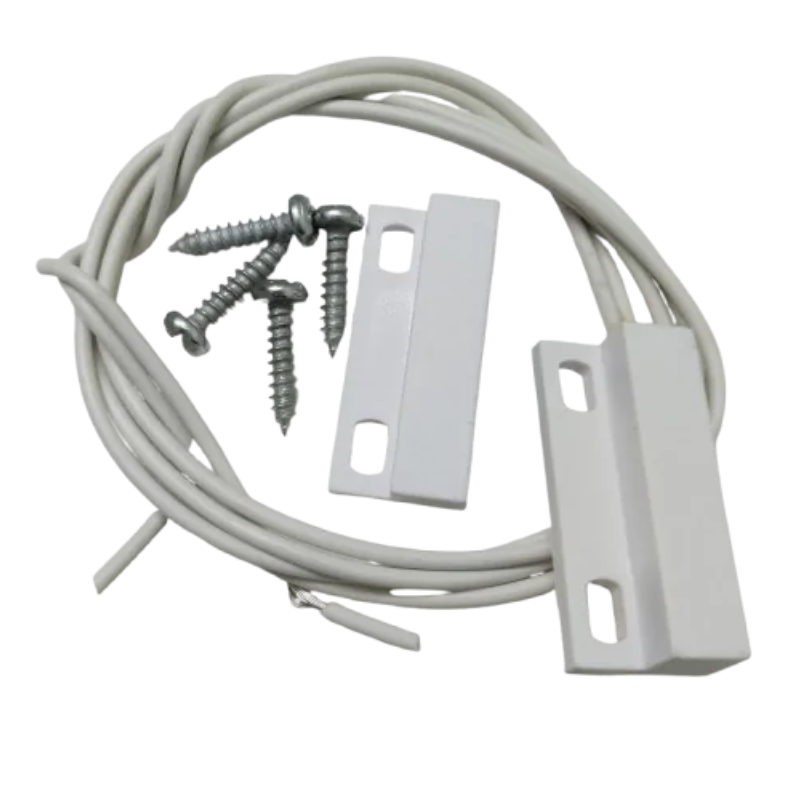

• 1L-MSM-113: Mini Stick-on contact with Flange

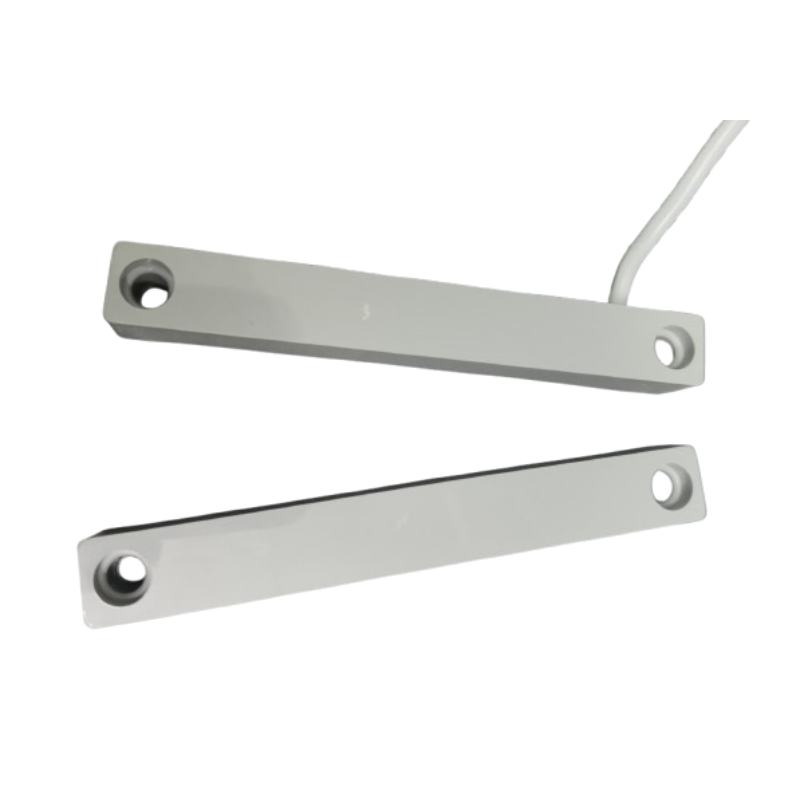

• 1L-MSM-114: Industrial Surface Mount with Large Gap
• 1L-MSM-114T: Industrial Surface Mount with Large Gap and Terminal Connector

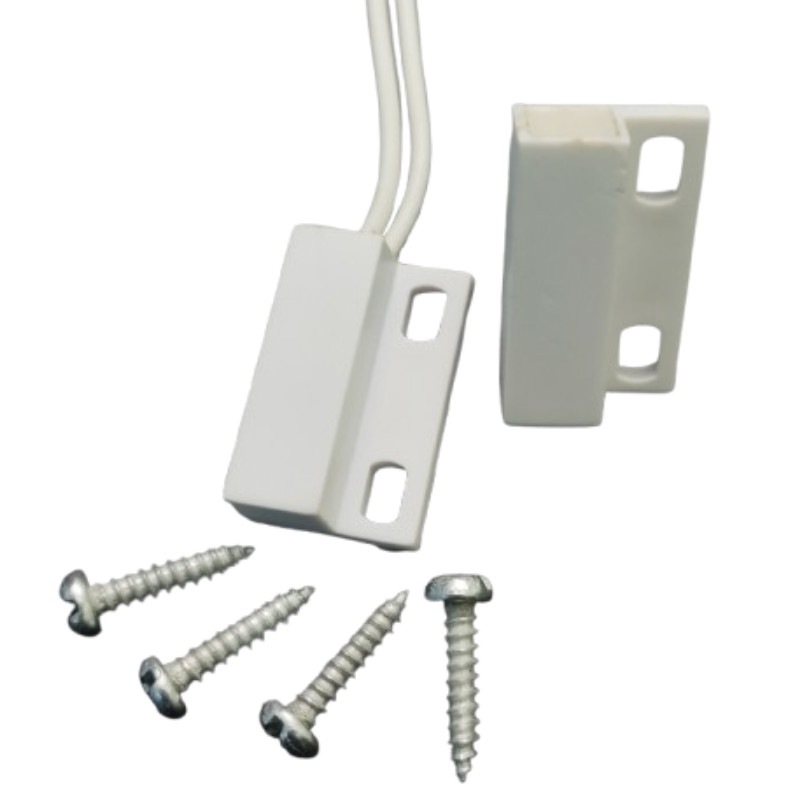

• 1L-MSM-115: Miniature Flange Mount with Side Wire Leads

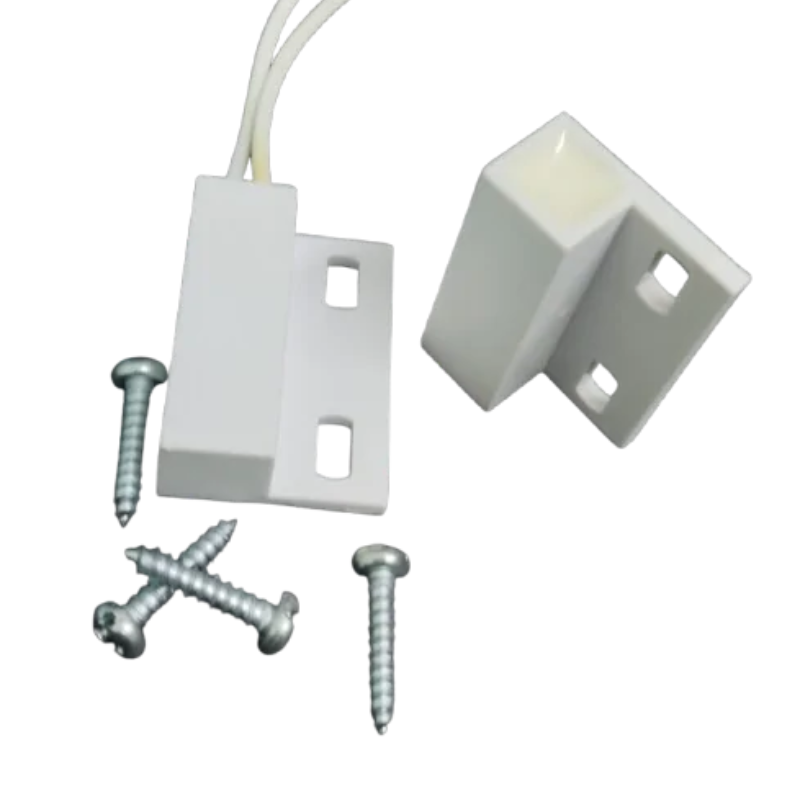

• 1L-MSM-116: Flange Mount with Side Wire Leads
• 1L-MSM-117: Surface Mount with Adhesive Tape

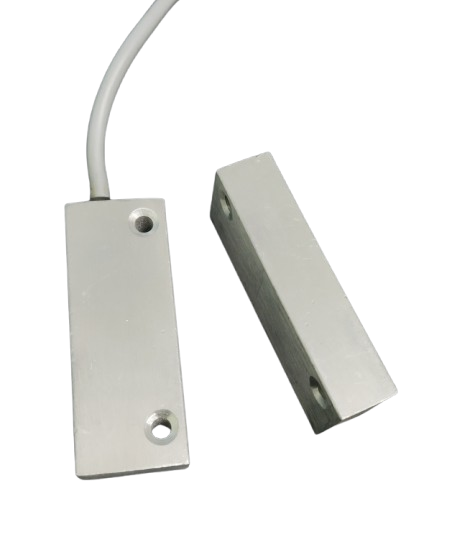

• 1L-MSS-101: Special Type Magnetic Switch

Each model is designed for easy installation and offers unique features suited to various applications.

Advantages and Features:

1. Easy and Quick Installation:

   • The surface mount design allows for simple installation without the need for drilling or recessing, reducing setup time and cost.

2. Compact and Space-Efficient:

   • With their small size and slim profile, these switches are ideal for applications with limited space, enabling easy integration into a wide range of systems.

3. Enhanced Security:

   • While mounted on the surface, these switches are still highly effective at securing doors, windows, and equipment, making tampering more difficult.

4. Durable and Reliable:

   • Built to withstand environmental factors, surface mount reed switches offer long-lasting performance with a mechanical life of over 10 million cycles and a low contact resistance of ≤ 200mΩ.

5. Versatile Switching Options:

   • Available in NO (Normally Open), NC (Normally Closed), and 3-wire changeover types, they provide flexibility to meet diverse application needs.

6. Wide Operating Range:

   • They operate effectively within a temperature range of -20°C to +70°C, making them suitable for both indoor and outdoor applications.

7. Customizable for Specific Needs:

   • Available in various sizes, wire lengths, and colors, these switches can be tailored to suit specific system requirements.

8. High Sensitivity and Consistent Performance:

   • The switches offer reliable operation with a wide switching distance, ensuring dependable activation in security and automation systems.

9. Environmental Resistance:

   • Resistant to moisture and dust, with a tolerance for humidity up to 95% non-condensing, these switches are designed to endure various environmental conditions.

10. Magnet Compatibility:

    • Works with both rare-earth and ceramic magnets, ensuring reliable switching even in different magnetic field strengths.

Technical Specifications:

1. Contact Type:

   • NO (Normally Open)
   • NC (Normally Closed)
   • 3-Wire Changeover

2. Contact Ratings:

   • Voltage: Up to 200V DC
   • Current: Up to 500mA
   • Power: Up to 10W

3. Switching Distance:

   • Operating Gap: 10mm to 50mm (depending on model)

4. Housing Material:

   • Durable ABS, Polycarbonate, or Nylon Plastic

5. Dimensions:

   • Length: 40mm to 100mm (varies by model)
   • Width: 6mm to 12mm (varies by model)
   • Height: 6mm to 12mm (varies by model)

6. Wire Specifications:

   • Wire Type: PVC or Teflon-insulated cables
   • Length: Standard 45cm to 1m (customizable)
   • Core Size: 14/38 ATC, 7/38 3 core AWM

7. Environmental Ratings:

   • Operating Temperature: -20°C to +70°C
   • Storage Temperature: -40°C to +85°C
   • Humidity: Up to 95% non-condensing

8. Mounting Type:

   • Surface Mount (requires adhesive or screws for installation)

9. Activation Magnet:

   • Included standard rare-earth or ceramic magnet
   • Magnet Dimensions: Varies based on switch sensitivity

10. Durability:

    • Mechanical Life: Over 10 million cycles
    • Contact Resistance: ≤ 200mΩ

11. Color Options:

    • Standard White, Black, or Brown (customizable upon request)

1 LEAP Technologies designs high-quality surface mount magnetic reed switches for diverse applications, including security systems, automation, and industrial equipment. These switches install easily and adapt to various needs with configurations like NO, NC, and 3-wire changeover. They feature a long life expectancy (10 million operations), robust shock and vibration resistance, and durable ABS plastic housing. Built to endure tough conditions, they deliver reliable performance across multiple environments, ensuring efficiency and dependability.

Links to Other Varients:

• Recessed Mount Magnetic Switches

• Overhead Mount Magnetic Switches

Magnetic sensors support a wide range of applications, powering industries from basic position sensing in everyday devices to advanced systems in military, medical, and telecommunications technologies. They enable critical functions like RF switching in cellular phones and advanced monitoring systems. Their versatility underscores their significance in driving modern technological advancements and innovation.
