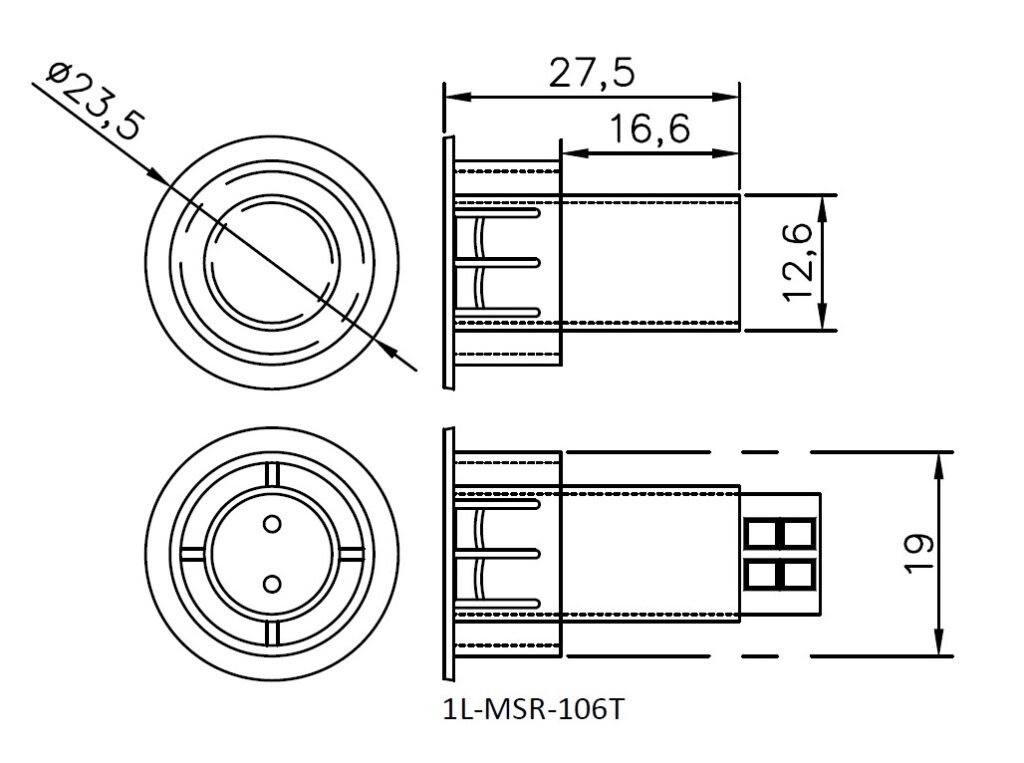

Model No. 1L-MSR-106T
3/4″ (19mm) dia Steel Door with Terminal Connector
Key Features
- ¾” Pressfit Steel door contact
- Wide Operating Gap 1 3/8″ (35mm) min.
- Terminal Connector Type
- Easy & Quick Installation

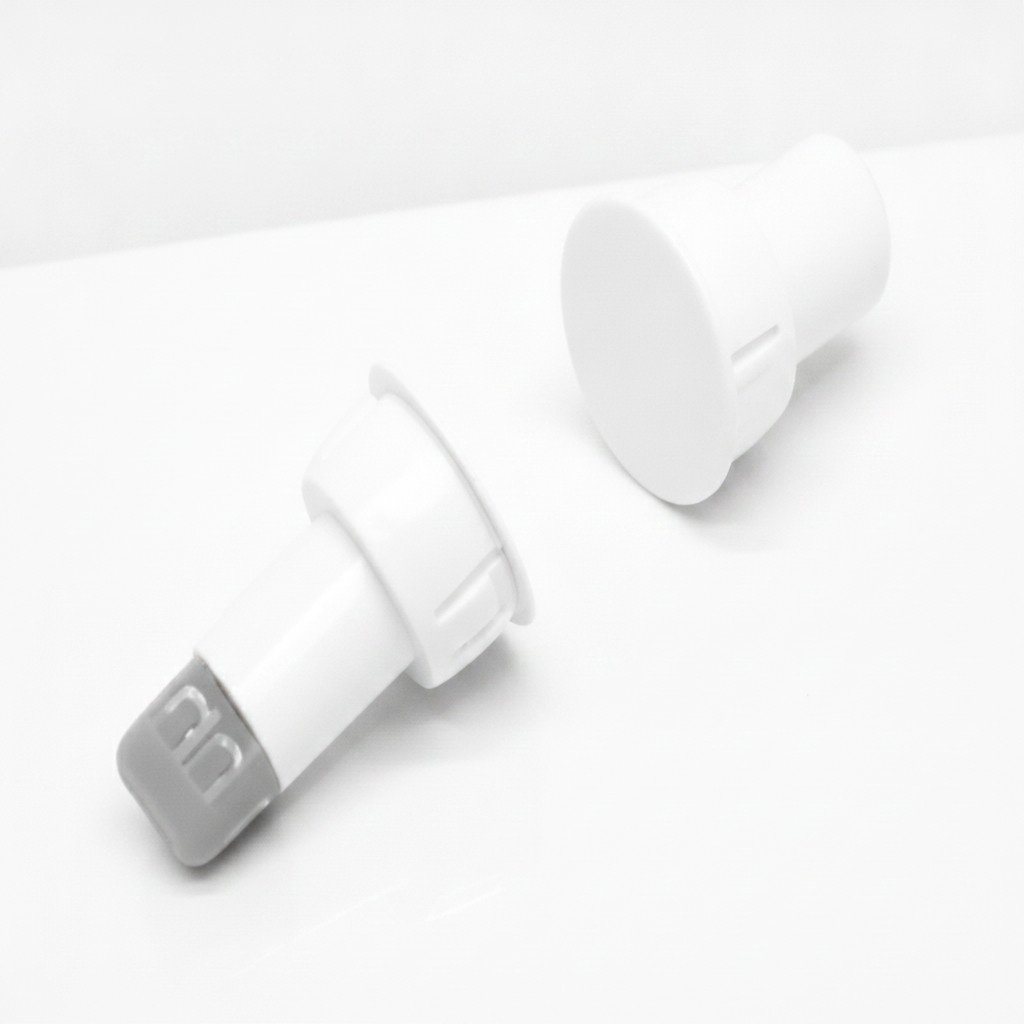

The 1L-MSR-106T is a recessed mount magnetic switch specifically engineered for industrial steel door applications and architectural installations. Designed with a ¾” press fit steel door contact, this model installs flush within the mounting surface, providing a concealed, secure, and tamper-resistant solution.
Manufactured by 1 LEAP Technologies, the 1L-MSR-106T is built for applications where mechanical strength, wide sensing distance, and reliable low-current switching are essential. This product is purpose-built for fixed installations and is not intended for compact electronics or consumer devices.
1L-MSR-106T – Recessed Mount Magnetic Switch
Original price was: ₹350.00.₹225.00Current price is: ₹225.00. (+18% GST extra)Specifications:-
- Contact Rating : 10W/VA
- Switching Voltage (Max.) : 200 VDC
- Switching Current (Max.) : 0.5 Amp.
- Contact Resistance (Min.) : 150 milli ohms
- Life Expectancy : 10 x 10⁶ Operations
- Insulation Resistance : 10 9 ohms
- Shock Resistance : 30G for 11 mSec.
- Vibration Resistance : 20G ( 10 to 1000Hz)
- Plastic Material : ABS Plastic (Unless otherwise specified)
¾" Pressfit Steel Door Contact Design
The ¾ inch pressfit steel door contact is one of the defining features of the 1L-MSR-106T. This design allows the switch body to be firmly seated inside a drilled cavity in steel doors or frames without the need for external brackets or fasteners.
Once installed, the switch remains securely locked in place, even in environments exposed to vibration or frequent door operation. The recessed and pressfit construction also protects the switch from accidental impact, mechanical damage, and unauthorized tampering, making it suitable for heavy-duty industrial and architectural use.
Wide Operating Gap – 1 3/8" (35 mm) Minimum
The wide operating gap of minimum 1 3/8″ (35 mm) makes the 1L-MSR-106T highly reliable in real-world installations where perfect door alignment cannot always be guaranteed. This extended sensing distance ensures consistent switching even when there are slight variations in door positioning or structural movement.
Such a wide operating gap is especially beneficial in steel door applications, large access panels, and industrial enclosures, where door size, weight, and environmental factors can affect alignment over time. This capability enhances operational reliability and reduces false switching.
Terminal Connector Type for Secure Wiring
The terminal connector type used in the 1L-MSR-106T is designed for stable and secure electrical connections in industrial environments. Terminal connections allow easy field wiring, quick servicing, and dependable performance under vibration and long-term use.
This connection method is preferred in industrial control systems, architectural access installations, and marine environments where wiring integrity and maintenance efficiency are critical.
Easy & Quick Installation
The recessed pressfit construction of the 1L-MSR-106T enables easy and quick installation. The switch can be installed by drilling the required diameter hole and pressing the unit into place, eliminating the need for additional mounting hardware. This simplifies on-site installation and reduces labor time, which is especially valuable in large-scale projects such as shipyards, commercial buildings, and industrial facilities.
Switching Current (Max.) – 0.5 Amp: Purpose-Driven Design
The maximum switching current of 0.5 Amp is intentionally defined for the 1L-MSR-106T to match its specific application requirements. This model is designed for signal-level and control circuit operation, not for high-power load switching.
In applications such as steel door monitoring, access status detection, and safety interlock systems, low current switching ensures long reed contact life and consistent performance. Limiting the switching current minimizes contact wear, prevents overheating, and avoids contact welding during frequent operation.
For this reason, the 1L-MSR-106T is not suitable for high-current devices or compact consumer electronics such as laptops. Its design focus is strictly on industrial and architectural sensing applications.
Applications of 1L-MSR-106T
Ship Building & Marine Applications
In ship building environments, steel doors, watertight compartments, and access panels require durable and vibration-resistant sensing solutions. The pressfit steel door design and wide operating gap of the 1L-MSR-106T make it well-suited for marine structures where reliability and mechanical stability are essential.
Architectural Steel Doors
Modern architectural projects demand concealed hardware that does not compromise aesthetics. The recessed mounting of the 1L-MSR-106T allows it to be used in steel doors, restricted access doors, and safety doors while maintaining a clean and professional appearance.
Industrial Enclosures & Panels
The 1L-MSR-106T is ideal for industrial enclosures, electrical cabinets, and control panels where door position monitoring is required. Its robust construction and stable terminal connections ensure dependable performance in demanding industrial conditions.
Why Choose 1L-MSR-106T from 1 LEAP Technologies
As one of the trusted industrial reed switch suppliers, 1 LEAP Technologies designs sensors that are application-specific and performance-focused. The 1L-MSR-106T is engineered to meet the exact requirements of industrial steel door sensing rather than general-purpose use.
For customers evaluating magnetic reed switch price, durability, and application suitability, this model offers a balanced solution backed by a reliable Sensor Manufacturer with proven expertise in recessed reed switch technology.
