Industrial-Grade Reed Sensor by 1 LEAP Technologies
Collared Rectangular type with Wire Leads
Key Features
- Recessed Mount Type
- Flat Shaped with Collar Flange for better retention
- 18″ Long Wire Leads
- Operate Gap 5/8″ (16 mm)
The 1L-MSR-102 Recessed Mount Magnetic Switch is accurately made recessed reed switch designed majorly for industrial and commercial sensing applications where covered installation, uniform performance, and long service life are needed. Manufactured by 1 LEAP Technologies, a trusted Reed Sensor Manufacturer and industrial reed switch supplier, this model is developed to meet the demanding requirements of automation systems, electrical enclosures, and industrial equipment.
This product is planned for applications where surface-mounted switches are not suitable due to space limitation, aesthetic requirements, or protection needs.
1L-MSR-102 – Recessed Mount Magnetic Switch
Original price was: ₹350.00.₹200.00Current price is: ₹200.00. (+18% GST extra)Specifications:-
- Contact Rating : 10W/VA
- Switching Voltage (Max.) : 200 VDC
- Switching Current (Max.) : 0.5 Amp.
- Contact Resistance (Min.) : 150 milli ohms
- Life Expectancy : 10x 10 6 Operations
- Insulation Resistance : 10 9 ohms
- Shock Resistance : 30G for 11mSec.
- Vibration Resistance : 20G ( 10 to 1000Hz)
- Magnets : ALINCO/ Rare Earth (Unless otherwise specified)
- Armour Jacket : Stainless Steel (Type 304)
- Plastic Material : ABS Plastic (Unless otherwise specified
Product Overview Of Model 1L-MSR-102

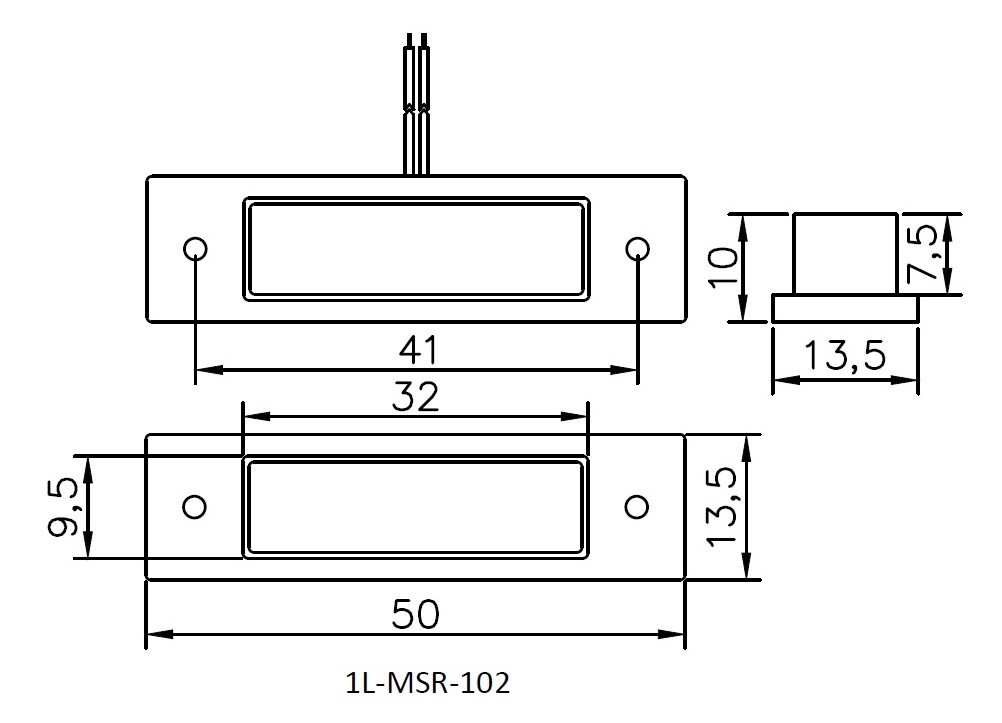

The 1L-MSR-102 is a recessed mount magnetic switch made to be installed within a pre-formed slot, allowing the switch body to sit flush with the mounting surface. This slot-based installation method makes sure a neat and professional appearance while keeping the switch perfectly positioned and protected from external impact.
Its flat-shaped body, combined with an unified collar flange, provides advance retention within the mounting slot. This design helps maintain stable alignment and prevents movement during operation, making the switch well-suited for fixed industrial installations where vibration or repeated activation can take place.
Recessed Mount Design for Concealed Installation
One of the defining characteristics of the 1L-MSR-102 reed switch is its recessed mount type design. Unlike surface-mounted magnetic switches, this model is implant within the material, making it less exposed to accidental impact, dust accumulation, or external stress. This recessed configuration is particularly useful in industrial cabinets, machinery panels, and access doors where compact installation and protection of components are important.
Flat Shaped Body with Collar Flange for Better Retention
The flat shaped construction with a collar flange plays an important role in long-term reliability. The collar flange prevents the switch from slipping or rotating once installed, making sure the uniform alignment with the activating magnet. This feature makes 1L-MSR-102 good for installations where the switch must remain strongly in position over extended periods, even in environments subject to vibration or repeated mechanical operation.
18 Inch Long Wire Leads for Flexible Wiring
The 18″ long wire leads provided with the 1L-MSR-102 electrical reed switch provides better flexibility during installation. These large leads simplify cable routing inside control panels, enclosures, or machinery housings, reducing the need for additional connectors or wire extensions.
Long wire leads also help maintain neat and organized wiring layouts, which is especially important in industrial electrical systems where maintenance and troubleshooting efficiency matter.
Exact Operate Gap – 5/8" (16mm)
The operate gap of 5/8 inch (16mm) making sure an accurate and reliable switching when the magnetic activation approaches the sensor. This defined operating distance allows system designers to maintain uniform alignment and foreseeable switching behavior.
This controlled operate gap makes the 1L-MSR-102 recessed reed switch an ideal for applications requiring reliable position sensing without false triggering or inconsistent activation.
Electrical Stability and Consistent Performance
Designed for industrial use, the 1L-MSR-102 magnetic switch provides an uniform electrical performance over repeated switching cycles. Its sealed reed contact construction helps maintain consistent output while protecting internal components from environmental contaminants.
This makes the switch suitable for continuous operation in automation and monitoring systems where dependable signal integrity is important.
Model-Specific Industrial Applications
The 1L-MSR-102 recessed mount magnetic switch is calculated strictly for industrial and commercial environments. It is not designed for consumer electronics such as laptops or handheld devices. Its size, construction, and mounting style make it ideal for the following applications:
- Industrial control panel door position sensing
- Electrical enclosures open/close monitoring
- Automation cabinets and machinery housings
- Industrial safety covers and access panels
- Equipment alignment and position detection systems
- Industrial access control installations
Each of these applications benefits from the recessed mounting, firm retention, and uniform operate gap provided by this specific model.
Advantages of Using 1L-MSR-102 in Industrial Systems
Using the 1L-MSR-102 electrical reed switch allows system designers and absorption to achieve a balance between concealed installation and reliable magnetic sensing. Its mechanical stability reduces maintenance needs, while its accurate switching behavior improves system accuracy. For industries requiring durable and dependable sensing solutions, this model provides a practical and long-lasting option.
Manufactured by 1 LEAP Technologies – Trusted Industry Partner
1 LEAP Technologies is recognized as a reliable Bulk Supplier and Bulk Service Provider of magnetic reed switches for industrial applications. As an experienced industrial reed switch supplier, the company focuses on quality manufacturing, uniform performance, and application-specific product design. The 1L-MSR-102 recessed reed switch reflects this dedication to industrial reliability and customer-focused.
Frequently Asked Questions (FAQs)
Can the 1L MSR 102 still function if there is “no magnetic switch” nearby?
No, the 1L‑MSR‑102 relies entirely on the magnetic field from a paired magnet to detect open or closed positions. Without a magnet, the switch cannot sense anything, so it won’t trigger alarms or automation systems. Think of it like a lock without a key — the system won’t know the door’s status until the magnet is installed.
Why do smart homes prefer recessed switches like the 1L MSR 102 over regular surface-mounted ones?
Recessed switches are hidden inside doors or frames, making them almost invisible and tamper-proof. The 1L‑MSR‑102 is perfect for smart homes because it delivers accurate detection without ruining interior aesthetics, works seamlessly with automation systems, and reduces false alarms caused by accidental bumps or environmental factors.
