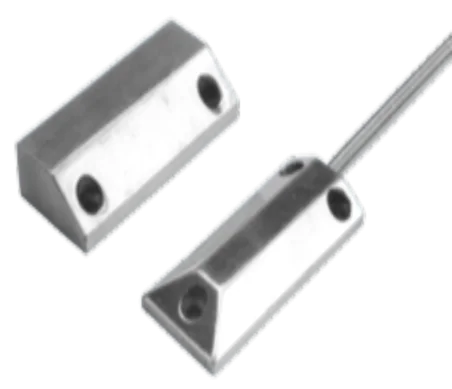

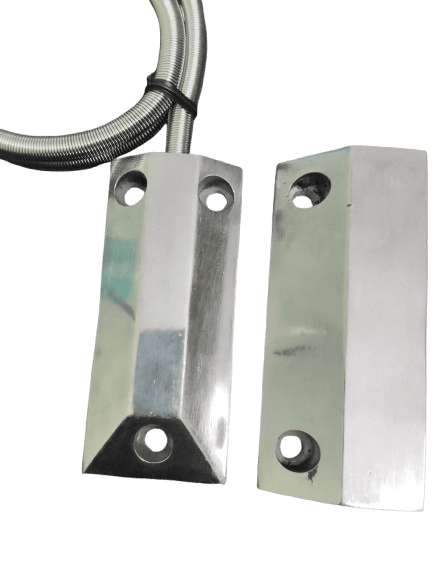

Heavy-duty Roller Shutter Contact manufactured by 1 LEAP Technologies

Rugged Aluminium housing with Armoured Cable

Key Features

  • Heavy Duty Roller Shutter Contact
  • Sturdy Polished Aluminium Die cast Housing
  • Wide Operating Gap 2″ min. (50mm)
  • 3′ Long Stainless Steel Armoured Cable
Technical Details
-15%
1L-MSO-101
Add to cart
Quick view
Add to wishlist

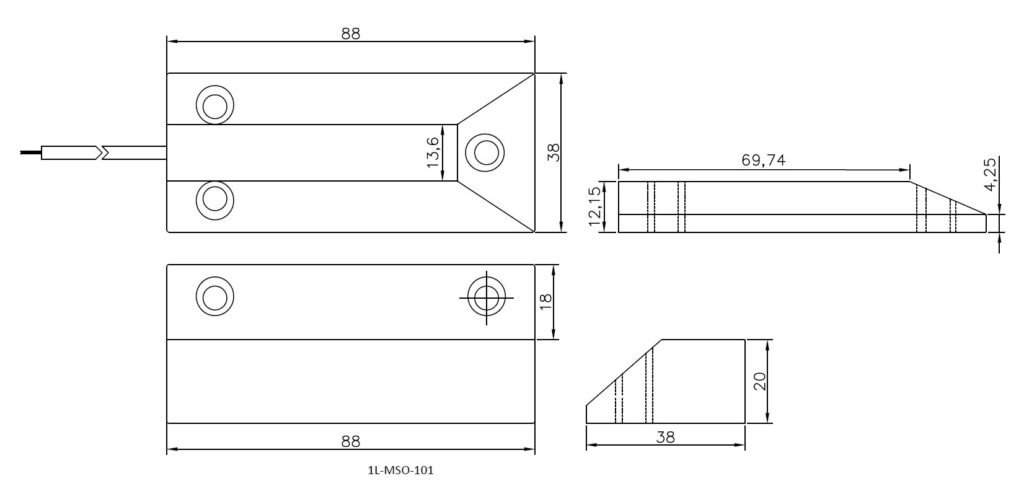

1L-MSO-101 – Overhead Mount Magnetic Switch

,
Original price was: ₹650.00.Current price is: ₹550.00. (+18% GST extra)

Specifications:-

  • Contact Rating : 10W/VA
  • Switching Voltage (Max.) : 200 VDC
  • Switching Current (Max.) : 0.5 Amp.
  • Contact Resistance (Min.) : 150 milli ohms
  • Life Expectancy : 10 x 10⁶ Operations
  • Insulation Resistance : 10 9 ohms
  • Shock Resistance : 30G for 11 mSec.
  • Vibration Resistance : 20G ( 10 to 1000Hz)
  • Plastic Material : ABS Plastic (Unless otherwise specified)

Overview of Product

The 1L-MSO-101 Overhead Mount Magnetic Switch is a heavy-duty magnetic switch robust, reliable, and specifically engineered for roller shutters or overhead door applications. This model is designed and manufactured by 1 LEAP Technologies to perform very well under demanding industrial and commercial applications where reliability, mechanical strength, and large sensing gap are required.

This magnetic switch comes under the category of Overhead Mount Magnetic Switch and is intended specifically for installations where overhead positioning and rugged construction are required. The 1L-MSO-101 is not designed with compact or consumer electronics in mind but rather for large mechanical systems and industrial shutter monitoring.

Heavy-Duty Roller Shutter Contact Design

The 1L-MSO-101 is specifically designed as a heavy-duty roller shutter contact, making it suitable for continuous operation in high-movement shutter systems. Its construction ensures the accurate detection of both shutter open and close positions, even under frequent mechanical stress. This makes the switch ideal for industrial shutter installations, with the requirement for reliability and long service life.

Extra Heavy-Duty Polished Aluminium Die-cast Housing

One of the strong points of the 1L-MSO-101 Overhead Magnetic Switch is its robust construction with a polished aluminium die-cast housing. The aluminium body provides excellent resistance to physical impact, vibration, and other severe operating conditions. The polished finish not only enhances durability but also protects the internal components from environmental exposure, thus assuring long service life in industrial applications.

The wide operating gap accepts flexible installation.

Operating range up to a minimum of 2″ (50 mm) provides flexibility for installation on large shutter and overhead door systems. This wide sensing distance ensures reliable operation when, due to limited mounting options, precise alignment between the switch and magnet is difficult to maintain. Such flexibility is particularly important in heavy roller shutters and overhead mounting applications.

Stainless Steel Armoured Cable for Industrial Protection

This model comes with a 3-foot length armoured cable made of stainless steel, which increases protection against mechanical damage and abrasion, and from external stress in general. The armoured design makes for safe and stable signal transmission even under the most demanding conditions of industrial environment, making the 1L-MSO-101 suitable for use in heavy-duty installation over extended periods. You doubtlessly have mixed emotions about trying to decide what to do with the rest of your life.

Magnetic Switch Configuration (overhead mount)

The 1L-MSO-101 has an overhead mount design that enables it to be attached securely at the top of roller shutters or overhead doors. The mounting configuration ensures high accuracy in position sensing and minimizes the possibility of accidental damage or tampering. The design is optimized for industrial shutter systems where overhead installation is the most practical and reliable solution.

Application Areas of Model 1L-MSO-101

The 1L-MSO-101 Overhead Mount Magnetic Switch is used only in those applications in which the size, mounting style, and operating gap are suitable. Typical application areas include:

  • Heavy-duty roller shutter doors
  • Industrial overhead door
  • Commercial shutter systems
  • Warehouse and factory shutter monitoring
  • Industrial access control and security systems

This model is not suitable for compact electronic devices, and it is intended strictly for industrial and commercial shutter applications.

Manufacturing Excellence- 1 LEAP Technologies

We operate as:

From industrial automation to security and access control requirements in various industries, support them all.

Buy Reed Switch – Bulk & OEM Supply

If you are seeking to purchase reed switch solutions designed specifically for overhead and roller shutter applications, the 1L-MSO-101 Overhead Magnetic Switch is precisely your best choice. 1 LEAP Technologies supplies this model in bulk quantity orders, OEM integration, and volume industrial projects on demand with guaranteed quality and timely delivery.
