1 LEAP Technologies today has become a renowned name in the field of Halogen Sensor. With an Expert & an experienced team 1 LEAP always strives to get quality assured products for its clients. All our products are thoroughly checked and only then are dispatched from our warehouse.
What are Halogen Sensors?
A Halogen Sensor or Spot Light Sensor is a High Watt Halogen Light or LED connected with PIR Motion Sensor, these lights are very effective for security purpose.
How does a Halogen Sensor work?
Halogen sensors are Halogen Light or LED High Watt Focus light connected with PIR Motion Sensors, when some moving object comes in the range of PIR Sensor, the system gets activated and lights ON the Halogen or LED’s. When the object moves out of range after preset time the light switches OFF. These sensors lights are very effective for security purpose.
Halogen Sensors are a great energy Saving device, and very effective for Security purpose, to frighten away unwanted intruders.
Advantages :
- Since halogen is connected to PIR Sensor, considerable amount of energy is saved.
- Light turns ON only when required.
- When not required light remains in switched OFF mode.
- Very effective for security purpose, to frighten away unwanted intruders.
- Along with light an additional Siren can also be connected to the system, which helps in frightening unwanted intruders, and alerting the security.
Application Areas For Halogen Sensors
- Boundary Walls
- Factory Gate
- Car-parks
- Store Rooms
- Border Security
- Office Areas
- Warehouse Areas
Varieties Of Halogen Sensors:-
- 1L-HS01 – Halogen Light Sensor 150W
- 1L-HS02 – Halogen Light Sensor 500W
- 1L-HS03 – LED Light with Sensor
Model No. 1L-HS01
Halogen Light PIR Sensor 150W
180° Wall Mount PIR Sensor is a fully automatic indoor security/courtesy light controller capable of controlling up to 1200W. This product acts as a great energy-saving switch and has good sensitivity and an integrated circuit. During night, the built-in passive infrared (PIR) motion sensor turns on the connected lighting system, when it detects motion in its coverage area. During the day, the built-in photocell sensor saves electricity by deactivating the lights.
The 180° Wall Mount PIR Sensor Switch detects the Infrared Rays released by the human body. The light or any other electrical appliance can be activated automatically by the active presence of a human body within the detection range/coverage area & when there is no active human presence the light will be deactivated automatically. An adjustable time knob lets you select how long the light stays on after activation. Hence a considerable amount of electricity cost is saved by the use of Sensor.
Specifications:-
- Operating Volt: 220-250VAC/50Hz,
- Load: 300W/1200W Max Ambient Light: 3-2000 (Adjustable),
- Load Type: Bulb, LED light, CFL, Fans, etc.,
- Detecting Dist.: 10~12M,
- Detecting Angle: 180 Deg.,
- Installation Height: 2.2-4 Mtr. Motion Detection Speed: 0.6~1m/s,
- Power Consumption: 0.1W (static) & 0.4(Work),
- Working Humidity: less than 93 % RH, Delay: 10 Seconds – 7 Minutes (Adjustable)
Features:-
- Built-in Photocell detects Day & Night.

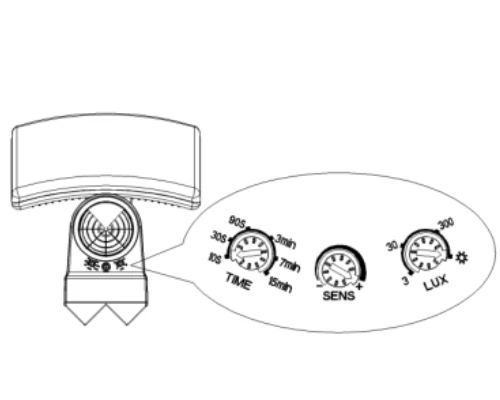

- LUX Level Control & Time Control
- Re-trigger Function, Time Delay added (Upon every detection time is set to zero)
- Adjustable Time Delay (10sec ± 3sec(preferable time 60sec). The maximum time is 7min±2min.
- Stand alone 220V AC operation
- Very easy to Use & Install (DIY)
Section:-
- Main Entrance
- Toilet / Pantry
- Stairways / Lifts / Lobby
- Covered Parking Area
- Locker Room / Trial Rooms
- Office / ATM / Malls
Installation:-
Switch off the power.

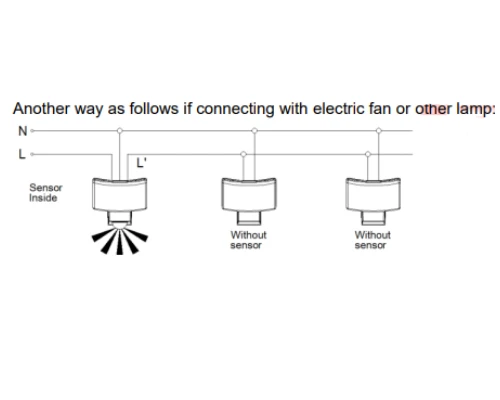

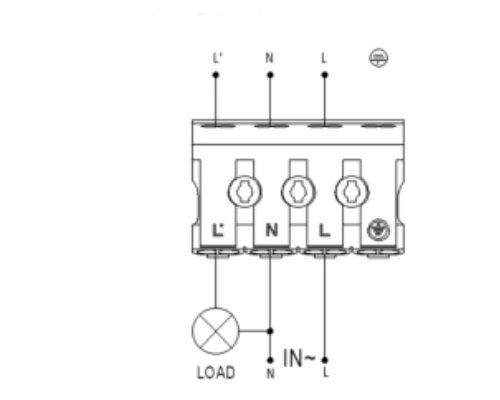

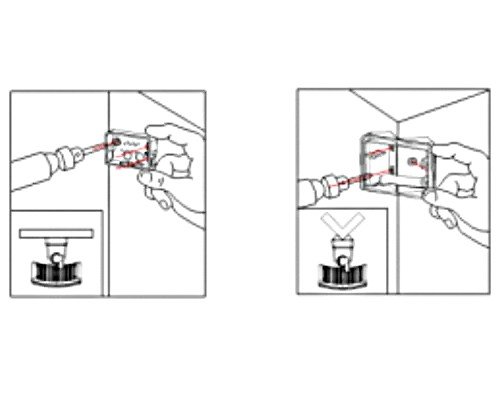

Turn the bottom-cover anti-clockwise and unload it. The power wire goes across the hole in the middle of bottom-stand. Connect the power and the load into the connection-wire column of the sensor according to connection-wire diagram. Fix the bottom-stand on the selected position with inflated screw…
For detailed installation refer to Installation Manual
Model No. 1L-HS02
Halogen Light PIR Sensor 500W
180° Wall Mount PIR Sensor is a fully automatic indoor security/courtesy light controller capable of controlling up to 1200W. This product acts as a great energy-saving switch and has good sensitivity and an integrated circuit. During night, the built-in passive infrared (PIR) motion sensor turns on the connected lighting system, when it detects motion in its coverage area. During the day, the built-in photocell sensor saves electricity by deactivating the lights.
The 180° Wall Mount PIR Sensor Switch detects the Infrared Rays released by the human body. The light or any other electrical appliance can be activated automatically by the active presence of a human body within the detection range/coverage area & when there is no active human presence the light will be deactivated automatically. An adjustable time knob lets you select how long the light stays on after activation. Hence a considerable amount of electricity cost is saved by the use of Sensor.
Specifications:-
- Operating Volt: 220-250VAC/50Hz,
- Load: 300W/1200W Max Ambient Light: 3-2000 (Adjustable),
- Load Type: Bulb, LED light, CFL, Fans, etc.,
- Detecting Dist.: 10~12M,
- Detecting Angle: 180 Deg.,
- Installation Height: 2.2-4 Mtr. Motion Detection Speed: 0.6~1m/s,
- Power Consumption: 0.1W (static) & 0.4(Work),
- Working Humidity: less than 93 % RH, Delay: 10 Seconds – 7 Minutes (Adjustable)
Features:-
- Built-in Photocell detects Day & Night.
- LUX Level Control & Time Control
- Re-trigger Function, Time Delay added (Upon every detection time is set to zero)
- Adjustable Time Delay (10sec ± 3sec(preferable time 60sec). The maximum time is 7min±2min.
- Stand alone 220V AC operation
- Very easy to Use & Install (DIY)
Section:-
- Main Entrance
- Toilet / Pantry
- Stairways / Lifts / Lobby
- Covered Parking Area
- Locker Room / Trial Rooms
- Office / ATM / Malls
Installation:-
Switch off the power.
Turn the bottom-cover anti-clockwise and unload it. The power wire goes across the hole in the middle of bottom-stand. Connect the power and the load into the connection-wire column of the sensor according to connection-wire diagram. Fix the bottom-stand on the selected position with inflated screw…
For detailed installation refer to Installation Manual
Model No. 1L-HS03
LED Light with PIR Sensor
180° Wall Mount PIR Sensor is a fully automatic indoor security/courtesy light controller capable of controlling up to 1200W. This product acts as a great energy-saving switch and has good sensitivity and an integrated circuit. During night, the built-in passive infrared (PIR) motion sensor turns on the connected lighting system, when it detects motion in its coverage area. During the day, the built-in photocell sensor saves electricity by deactivating the lights.
The 180° Wall Mount PIR Sensor Switch detects the Infrared Rays released by the human body. The light or any other electrical appliance can be activated automatically by the active presence of a human body within the detection range/coverage area & when there is no active human presence the light will be deactivated automatically. An adjustable time knob lets you select how long the light stays on after activation. Hence a considerable amount of electricity cost is saved by the use of Sensor.
Specifications:-
- Operating Volt: 220-250VAC/50Hz,
- Load: 300W/1200W Max Ambient Light: 3-2000 (Adjustable),
- Load Type: Bulb, LED light, CFL, Fans, etc.,
- Detecting Dist.: 10~12M,
- Detecting Angle: 180 Deg.,
- Installation Height: 2.2-4 Mtr. Motion Detection Speed: 0.6~1m/s,
- Power Consumption: 0.1W (static) & 0.4(Work),
- Working Humidity: less than 93 % RH, Delay: 10 Seconds – 7 Minutes (Adjustable)
Features:-
- Built-in Photocell detects Day & Night.
- LUX Level Control & Time Control
- Re-trigger Function, Time Delay added (Upon every detection time is set to zero)
- Adjustable Time Delay (10sec ± 3sec(preferable time 60sec). The maximum time is 7min±2min.
- Stand alone 220V AC operation
- Very easy to Use & Install (DIY)
Section:-
- Main Entrance
- Toilet / Pantry
- Stairways / Lifts / Lobby
- Covered Parking Area
- Locker Room / Trial Rooms
- Office / ATM / Malls
Installation:-
Switch off the power.
Turn the bottom-cover anti-clockwise and unload it. The power wire goes across the hole in the middle of bottom-stand. Connect the power and the load into the connection-wire column of the sensor according to connection-wire diagram. Fix the bottom-stand on the selected position with inflated screw…
For detailed installation refer to Installation Manual
