STANELEC-HCPL REED SWITCH

Model : IMPS-9021 (2 WIRE)

The IMPS-9021 is an electric proximity switch. The internal reed switch is actuated magnetically by piston of the cylinder. The position of piston is indicated by LED. The switch in Combination with fastening kit is used for interrogating the piston position on cylinders.

Technical Details:-

  • Operating voltage range :- 12 ….30V AC/DC
  • Max. Load current:- 500 mA
  • Max. switching output:- 10w
  • Output:- DC
  • Switching frequency:- 1000 Hz
  • Switching function:- LED
  • Operating signal :- NO
  • Ripple:- ˂10%
  • Degree of protection:- IP 67
  • Temp. range: -25° C…+70° C

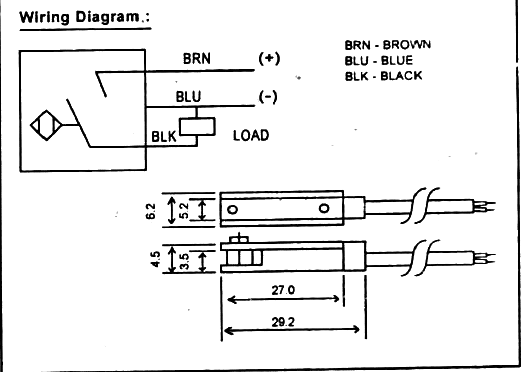

  • Wiring: Brown (+ve), Blue (Gnd)
  • Protection: Against transient response

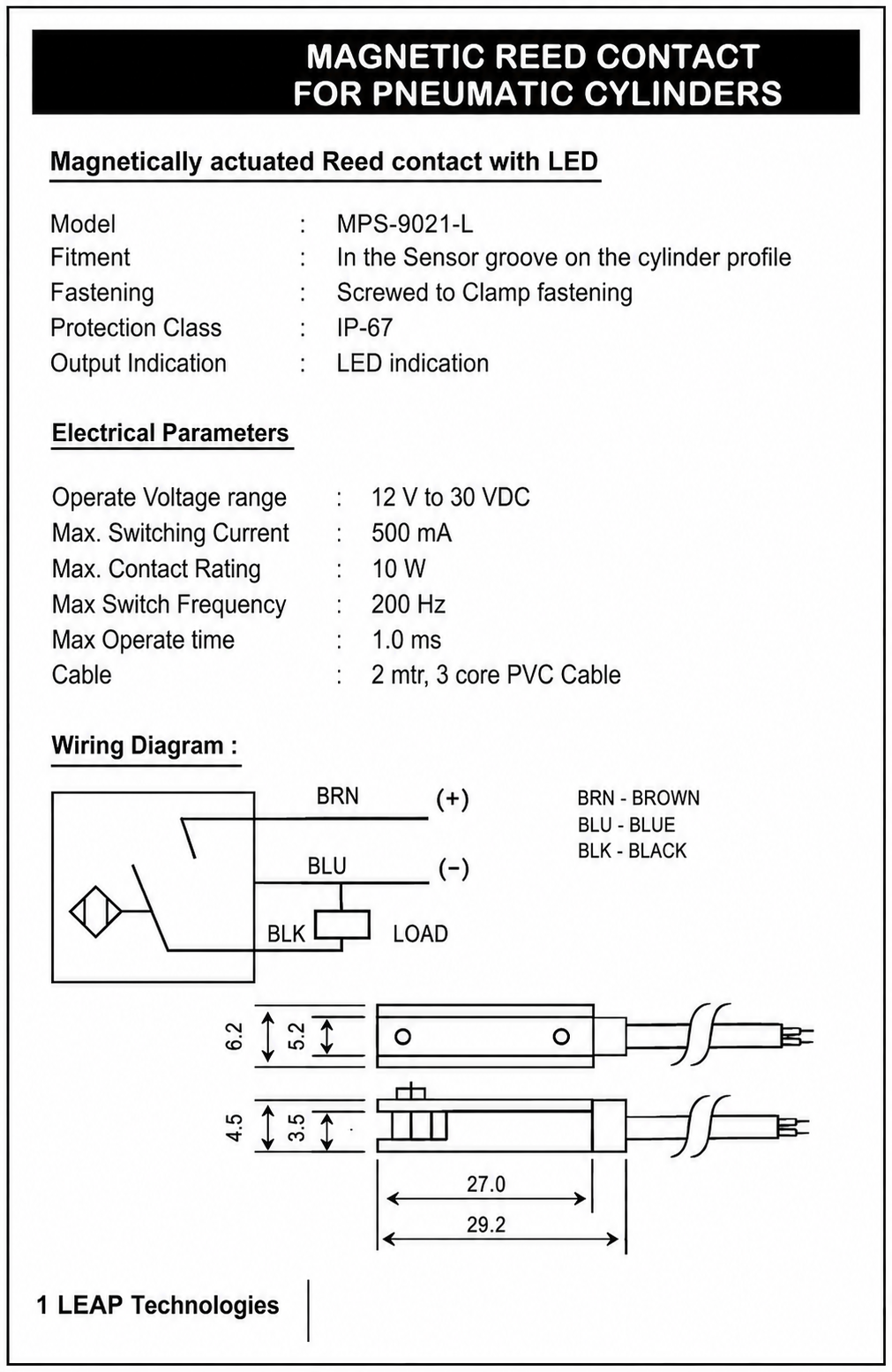

Magnetically Actuated Reed Contact With LED

Model : MPS-9021-L

Specifications:-

  • Fitment:- In the Sensor groove on the cylinder profile
  • Fastening:- Screwed to Clamp fastening
  • Protection Class:- IP-67
  • Output Indication:- LED indication

Electrical Parameters:-

  • Operate Voltage range:- 12 V to 30 VDC
  • Max. Switching Current:- 500 mA
  • Max. Contact Rating:- 10 W
  • Max Switch Frequency:- 200 Hz
  • Max Operate time:- 1.0 ms
  • Cable:- 2 mtr, 3 core PVC Cable
