The new LC-2xx
Hardwired detectors represents the ultimate choice for residential and industrial security installations.

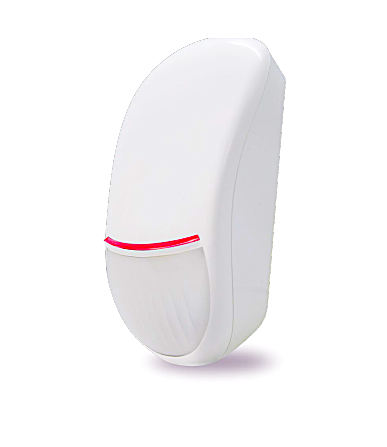

LC-200 is a fully digital PIR detector. It was designed to deliver unprecedented
detection accuracy compared to traditional detectors with analog PIR and digital
processing. Top drawer quality and detection efficiency of LC-200 is achieved thanks to lenses designed using LODIFF ® technology and made from POLY IR ® materials
In order to shorten the time of installation and simplify the process, the LC-200 features built-in EOL resistors with values required by PowerSeries Neo and PRO control panels. Installers may choose to use their own resistors for compatibility with any other hardwired control panel. The overall security of the installed system is further enhanced with double tamper protection (case opening and tearing from the wall).
Key Features
1L-MSM-111
- Fully digital PIR
- LODIFF ® optics technology and POLY IR ® materials create a perfect combination of highest quality and efficiency
- Compatible with any hardwired control panel
- Internal EOL resistors built-in
- Double tamper (case / wall) protection
- White light protection and high RFI immunity
Specifications:-
- Range:- 15 meters
- Field of view:- 100 degrees
- Lens:- Fresnel lens with LODIFF ® technology and POLY IR ®4 materials
- LED color:- Red
- Walk test:- Yes
- Built in EOL resistors:- Yes, 5.6 kOhm
- Double tamper (wall / case):- Yes
- Creep zone:- Yes
- Pulse counter:- Yes
- RFI protection;- 30 V/m
- Temperature compensation:- Yes
- Mounting:- Direct on the wall or with bracket (LC-L2ST)
- Power supply:- 13.8 Vdc
- Current draw:- 9mA
- Pet Immunity:- Yes, up to 15 kg
- Dimensions:- 114 x 63 x 40 mm
