Reliable Metal Detection for Industrial Automation

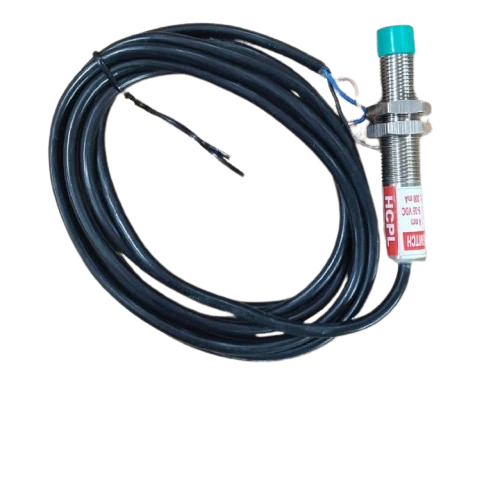

The M12 Inductive Proximity Switch is designed for accurate, non-contact detection of metallic objects. With a rugged brass housing and IP65 protection, it ensures reliable performance in demanding industrial environments.
Available Types in M12 Series
The M12 Inductive Proximity Switch is available in three types to suit different installation requirements:
- M 12 NPN /NO /NFM
- M 12 PNP/ NO/ FM
- M 12* 75 PNP/ NO/ NFM
Model:- M12 NPN / NO / NFM
Specifications:-
- Size:- M 12 X 60 mm
- Housing Material:- Brass
- Protection:- IP 65
- Sensing Range:- 02 mm (Flush Mount), 04 mm (Non Flush Mount)
- Output Function:- NPN/NO
- Detected Object:- Metal Body
Model:- M 12 PNP/ NO/ FM
Specifications:-
- Size:- M 12 X 60 mm
- Housing Material:- Brass
- Protection:- IP 65
- Sensing Range:- 02 mm (Flush Mount), 04 mm (Non Flush Mount)
- Output Function:- PNP/NO
- Detected Object:- Metal Body
Model:- M 12* 75 PNP/ NO/ NFM
Specifications:-
- Size:- M 12 X 75 mm
- Housing Material:- Brass
- Protection:- IP 65
- Sensing Range:- 02 mm (Flush Mount), 04 mm (Non Flush Mount)
- Output Function:- PNP/NO
- Detected Object:- Metal Body
Available Types in M18 Series
The M18 Inductive Proximity Switch is available in three types to suit different installation requirements:
- M 18 PNP/NO /NFM
- M 18 PNP/ NO+NC/ FM
- M 18 DC/ NO/ NFM
Model:- M18 PNP/ NO / NFM
Specifications:-
- Size:- M 18 X 70 mm
- Housing Material:- Brass
- Protection:- IP 65
- Sensing Range:- 05 mm (Flush Mount), 08 mm (Non Flush Mount)
- Output Function:- PNP/NO
- Detected Object:- Metal Body
Model:- M18 PNP/NO+NC/FM
Specifications:-
- Size:- M 18 X 60 mm (Full Thread)
- Housing Material:- Brass
- Protection:- IP 65
- Sensing Range:- 05 mm (Flush Mount), 08 mm (Non Flush Mount)
- Output Function:- PNP/NO+NC
- Detected Object:- Metal Body
Model:- M18 PNP/NO+NC/FM
Specifications:-
- Size:- M 18 X 70 mm
- Housing Material:- Brass
- Protection:- IP 65
- Sensing Range:- 05 mm (Flush Mount), 08 mm (Non Flush Mount)
- Output Function:- DC/NO/2 wire
- Detected Object:- Metal Body

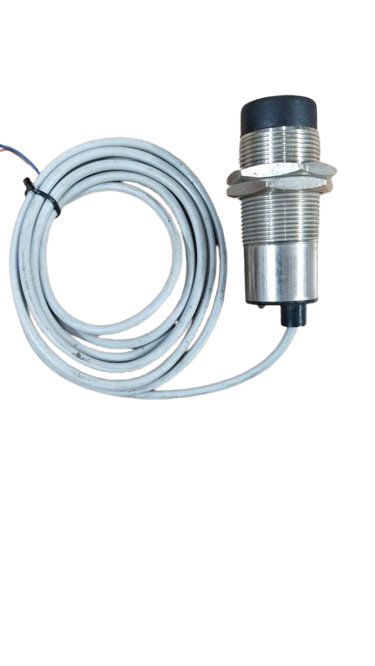

Available Types in M30 Series
The M30 Inductive Proximity Switch is available in three types to suit different installation requirements:
- M 30 DC/NO /NFM
- M 30 PNP/ NO/ NFM
- M 30 AC/ NC/ NFM
Model:- M30 DC/NO/NFM
Specifications:-
- Size:- M 30 X 65 mm
- Housing Material:- Brass
- Protection:- IP 65
- Sensing Range:- 15 mm
- Output Function:- DC/NO/2 wire
- Detected Object:- Metal Body
Model:- M30 PNP/NO/NFM
Specifications:-
- Size:- M 30 X 65 mm
- Housing Material:- Brass
- Protection:- IP 65
- Sensing Range:- 15 mm
- Output Function:- PNP/NO
- Detected Object:- Metal Body
Model:- M30 AC/NC/NFM
Specifications:-
- Size:- M 30 X 65 mm
- Housing Material:- Brass
- Protection:- IP 65
- Sensing Range:- 15 mm
- Output Function:- AC/NC
- Detected Object:- Metal Body
