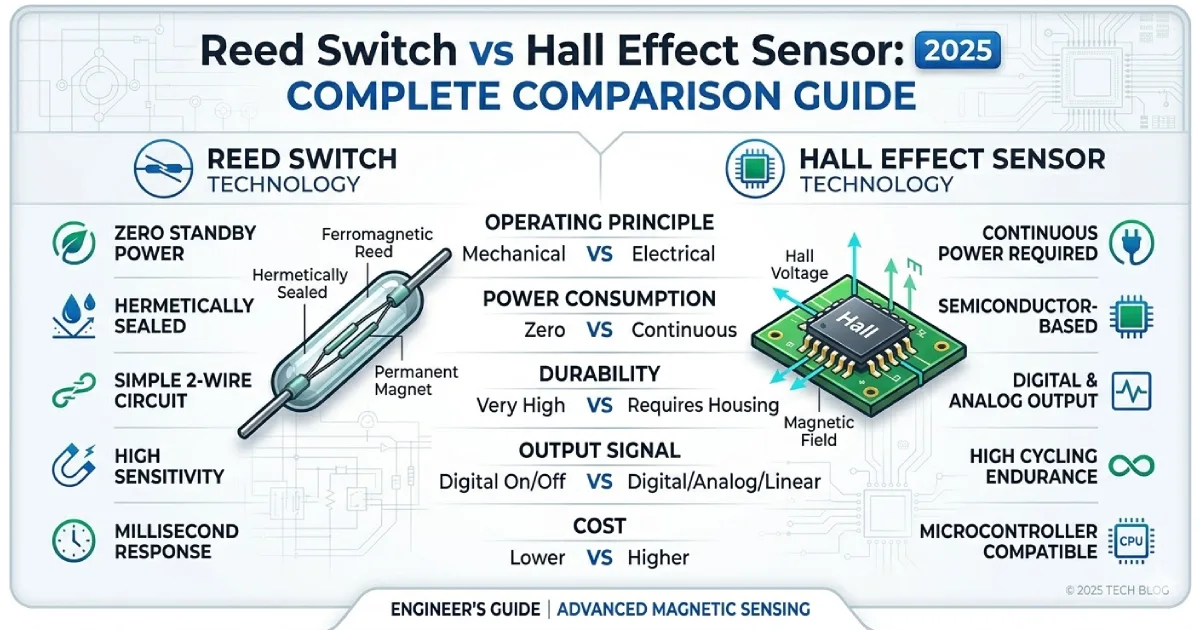

Reed Switch vs Hall Effect Sensor: Complete Comparison Guide for Engineers 2025
When selecting magnetic sensing solutions for modern engineering applications, the choice between reed switches and Hall effect sensors can significantly impact performance, reliability, and total cost of ownership. This comprehensive guide compares these two technologies, helping design engineers choose the optimal component for their specific needs.
Quick Comparison Overview
| Parameter | Reed Switches | Hall Effect Sensors |
|---|---|---|
| Power Consumption | Zero standby power | Continuous power required (3–20 mA) |
| Switching Speed | Millisecond response, up to 10× faster than comparable relays | Typically slower due to electronic processing |
| Environmental Durability | Hermetically sealed, dust- and waterproof, explosion-safe | Requires protective housing and conditioning circuitry |
| Component Cost | Lower component cost | Higher cost due to integrated electronics |
| Magnetic Sensitivity | Detects weak magnets at greater distances | Adjustable sensitivity; requires stronger fields for digital switching |
| Circuit Complexity | Simple 2-wire connection | Requires power supply, amplifier, and signal processing |
Reed Switch Technology
Reed switches are electrical switches that close or open a circuit in response to a magnetic field. Inside a sealed glass envelope, two ferromagnetic contacts are held apart by a spring mechanism. When exposed to a magnetic field, the contacts attract and close the circuit; once the field is removed, the spring returns them to the open state.
How Reed Switches Work
A magnetic field from a permanent magnet or electromagnet induces magnetization in the contacts.
Contacts close within milliseconds, completing the circuit.
Spring-forced contact separation upon field removal reopens the circuit.
The lightweight, thin contacts enable exceptionally fast switching—up to 10 times faster than comparable relays—making reed switches ideal for rapid actuation applications. Additionally, the sealed glass envelope protects the contacts from dust, moisture, and corrosion, ensuring long-term reliability even in harsh environments. This hermetic sealing also eliminates sparking, which makes reed switches safe for use in explosive or flammable atmospheres, broadening their range of applications.
Reed Switch Variants & Mounting Options
Surface Mount Reed Switches are designed for robust installations in space-conscious applications like door and window sensors, access control, and security systems. Though larger than typical PCB-mount components, they integrate into mechanical assemblies rather than directly onto PCBs.
Recessed Mount Reed Switches offer flush installations within door frames, window profiles, or housing cavities, providing an unobtrusive appearance while maintaining reliable operation in building automation and safety devices.
Overhead Mount Reed Switches deliver high-reach accessibility for industrial automation, allowing maintenance or adjustment without disassembly of machinery or enclosures. This configuration suits conveyor systems, robotics, and large-scale security gates.
Hall Effect Sensor Technology
Hall effect sensors detect magnetic fields by measuring the voltage (Hall voltage) generated across a semiconductor when current flows perpendicular to an applied magnetic field. They provide either digital on/off outputs or analog voltage proportional to field strength.
Operation Principles
Digital Hall Sensors switch output state when a threshold field is reached.
Analog Hall Sensors produce a continuous voltage representing field magnitude.
Linear Hall Sensors offer precise field strength and polarity measurement.
Each type requires a constant power supply and onboard signal conditioning, leading to higher integration complexity compared to reed switches.
Performance Comparison
Power Consumption
Reed Switches: Zero power draw when idle; power only flows during actuation.
Hall Sensors: Continuous current draw (typically 3–20 mA) even when not switching.
Switching Speed
Reed Switches: Switching times in the millisecond range—suitable for high-speed applications.
Hall Sensors: Slower response due to signal amplification and processing, though sufficient for most control tasks.
Environmental Durability
Reed Switches: Hermetic sealing protects against dust, moisture, and corrosive atmospheres; safe for explosive or underwater environments.
Hall Sensors: Require protective enclosures and conformal coatings to achieve similar environmental resilience.
Magnetic Sensitivity
Reed Switches: High sensitivity to weak magnets enables detection over larger air gaps and with smaller actuators.
Hall Sensors: Sensitivity adjustable via electronics but generally need stronger magnetization for reliable digital switching.
Application Recommendations
Security & Access Control
Reed switches excel in door/window sensors and access control systems due to zero standby power, hermetic sealing, and simple mounting options (surface or recessed). Their invisible activation via concealed magnets delivers sleek, tamper-resistant installations.
Industrial Automation
For conveyor monitoring, robotic limit sensing, and safety interlocks, overhead mount reed switches ensure robust performance with easy maintenance access. Their fast switching and contamination resistance make them ideal for harsh factory environments.
Automotive Systems
Reed switches in brake/clutch actuation, fuel-level monitoring, and seat-belt detection benefit from low contact resistance, long lifespan, and immunity to vibration and temperature extremes.
Marine & Aerospace
Hermetic sealing and spark-free operation render reed switches suitable for navigation systems, waterproof equipment, landing-gear sensors, and missile guidance in demanding aerospace and marine contexts.
Analog Sensing & Control
When continuous measurement of magnetic field strength is required—such as proximity sensing with varying distance—analog Hall sensors provide proportional output with adjustable thresholds. Their immunity to contact bounce enhances reliability in high-cycle applications.
Total Cost of Ownership
| Cost Factor | Reed Switches | Hall Effect Sensors |
|---|---|---|
| Component Cost | Lower, standalone switch | Higher, includes electronics |
| Integration | Simple 2-wire installation | Complex power and signal routing |
| Energy Costs | Zero when idle | Continuous draw impacts battery life |
| Maintenance | Long lifespan, minimal upkeep | Potential recalibration and failure |
Reed switches offer lower upfront and operational costs for on/off sensing, while Hall sensors justify their higher cost in applications demanding analog output or precise switching thresholds.
Decision Criteria
Choose Reed Switches when you need:
Zero power when idle
Fast, reliable on/off switching
Hermetic sealing for harsh environments
Simple mechanical integration (door/window, industrial assemblies)
High sensitivity to weak magnets
Choose Hall Effect Sensors when you require:
Analog field strength measurement
Multiple switching points from one sensor
Electronic hysteresis control
Integration into digital control systems
Conclusion
For 2025 engineering projects prioritizing efficiency, durability, and cost-effectiveness in binary magnetic sensing, reed switches remain the preferred choice. Their hermetically sealed design, zero standby power, and fast switching make them indispensable for security systems, industrial automation, automotive applications, and more. Hall effect sensors, with their analog and digital versatility, serve specialized roles where continuous measurement or multiple thresholds are essential.
By understanding these key distinctions—power consumption, response speed, environmental resilience, and integration complexity—design engineers can confidently select the optimal component for each application, ensuring robust performance and long-term reliability.
Reed Switch vs Hall Effect Sensor
