Reed Switch Dead Zone
If your reed switch sometimes refuses to respond even when a magnet is nearby, you are most likely facing the Reed Switch Dead Zone. This is not a defect but a natural effect of physics. By understanding it clearly, you can minimize the issue and achieve smoother performance in your project.
What Is a Reed Switch?
A reed switch is a small but powerful device used in automation, security, and DIY projects. Inside a tiny glass tube, it holds two ferromagnetic reeds. When you bring a magnet close, the reeds attract each other and make contact, closing the electrical circuit. This simple mechanism creates a reliable ON or OFF signal for your system.

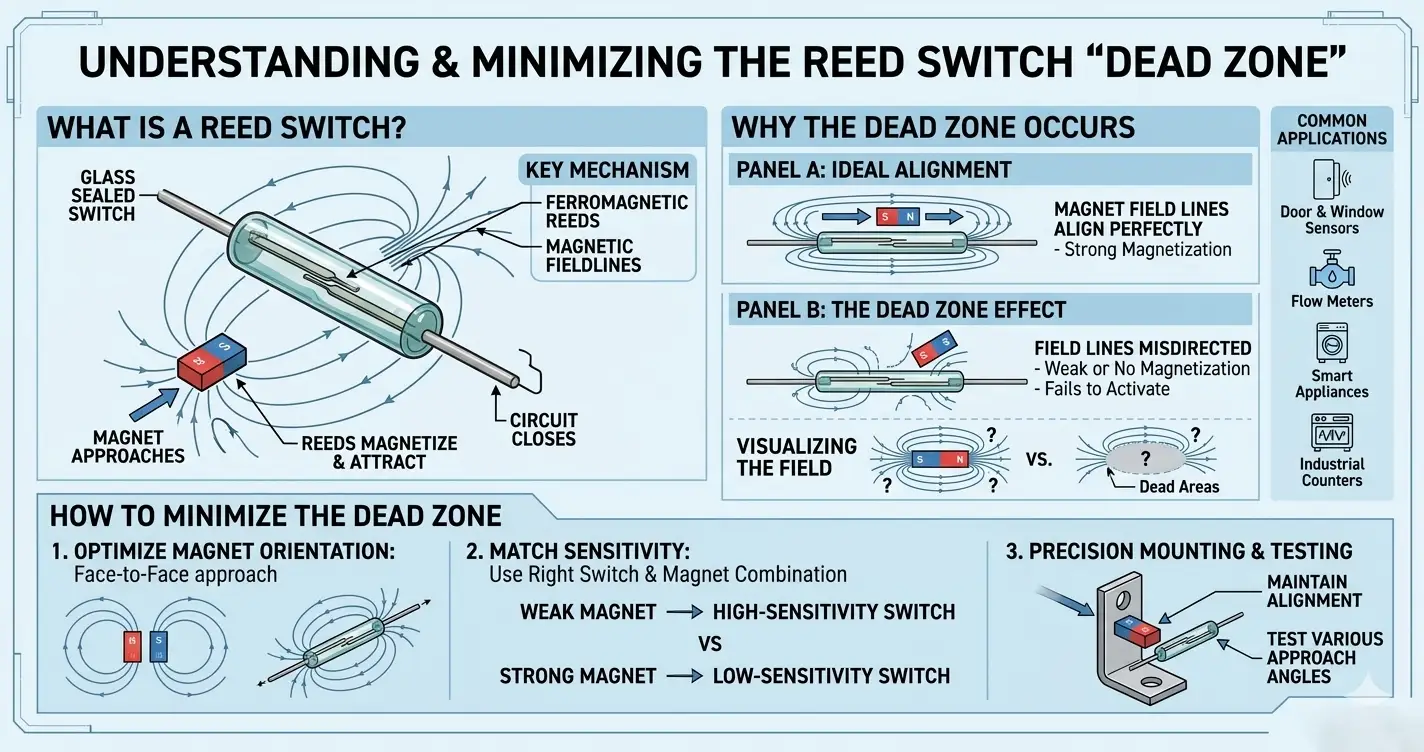

What Is the Reed Switch Dead Zone?

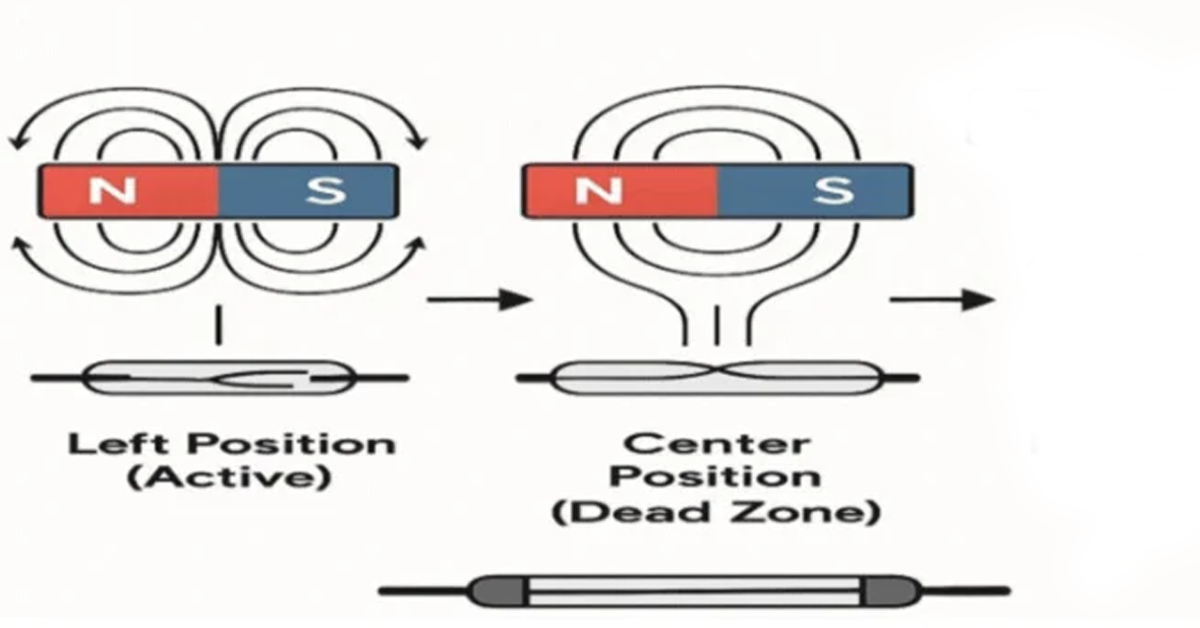

The Dead Zone refers to the small space where the magnet is close to the switch, but the switch does not activate. This usually happens when you slide a magnet across or along the reed switch instead of moving it directly toward it.
Think of it like shining a flashlight: sometimes a tiny shadow prevents the light from reaching certain spots. Similarly, the dead zone is that “shadow” where the magnetic field does not properly trigger the switch.
Why Does the Dead Zone Happen?
The dead zone appears because of how magnetic fields interact with the reeds. If the magnet’s field is not strong enough, or if it is not correctly aligned, the contacts do not close. The size and shape of the magnet, its strength, and the way you move it all play a role.
Most importantly, this is a physical principle—not a product defect. Every reed switch, whether made by a small supplier or a global manufacturer, will show some level of dead zone behavior.
Is the Reed Switch Dead Zone a Fault?
Absolutely not! A dead zone does not mean your switch is defective. Instead, it is a predictable effect of magnetism. High-quality reed switches are designed, manufactured, and tested carefully, but they all follow the same physics.
How to Minimize the Dead Zone
Although you cannot completely eliminate the Reed Dead Zone, you can reduce it significantly. Here are some proven ways:
Move the magnet directly face to face with the reed switch rather than sliding it sideways.
Select a reed switch and magnet combination with the right sensitivity for your application.
Test different mounting positions and orientations to find the most reliable alignment.
With these methods, you can achieve more consistent switching and reduce the risk of missed activations.
FAQ: Reed Switch Dead Zone
Q: What causes a reed switch dead zone?
A: Dead zones occur when the magnet’s field is not strong or properly aligned to trigger the reeds. This usually happens due to sideways movement of the magnet.
Q: Can dead zones be completely eliminated?
A: No. However, you can minimize them by using stronger magnets, more sensitive switches, and better positioning.
Q: Does the dead zone mean my reed switch is defective?
A: No—the dead zone is normal and expected in all reed switches.
Q: Where can I use reed switches with minimal dead zone issues?
A: Applications where the magnet approaches directly toward the switch (“face to face”) are less likely to encounter dead zones.
Q: Who can help me choose the right reed switch?
A: A sensor specialist or supplier can guide you in selecting and installing the right reed switch for your project.
Conclusion
The Reed Switch Dead Zone is a natural outcome of magnetic physics, not a sign of faulty design. By understanding why it happens and adjusting how you mount and align your magnet, you can minimize its impact. For best results, always test different orientations and consult your supplier for expert advice.
