Why Understanding Reed Switch Issues Matters
Knowing the quirks of reed switches helps you:
- Avoid downtime and troubleshooting headaches
- Prevent costly system failures
- Design systems that work reliably, even in tough environments

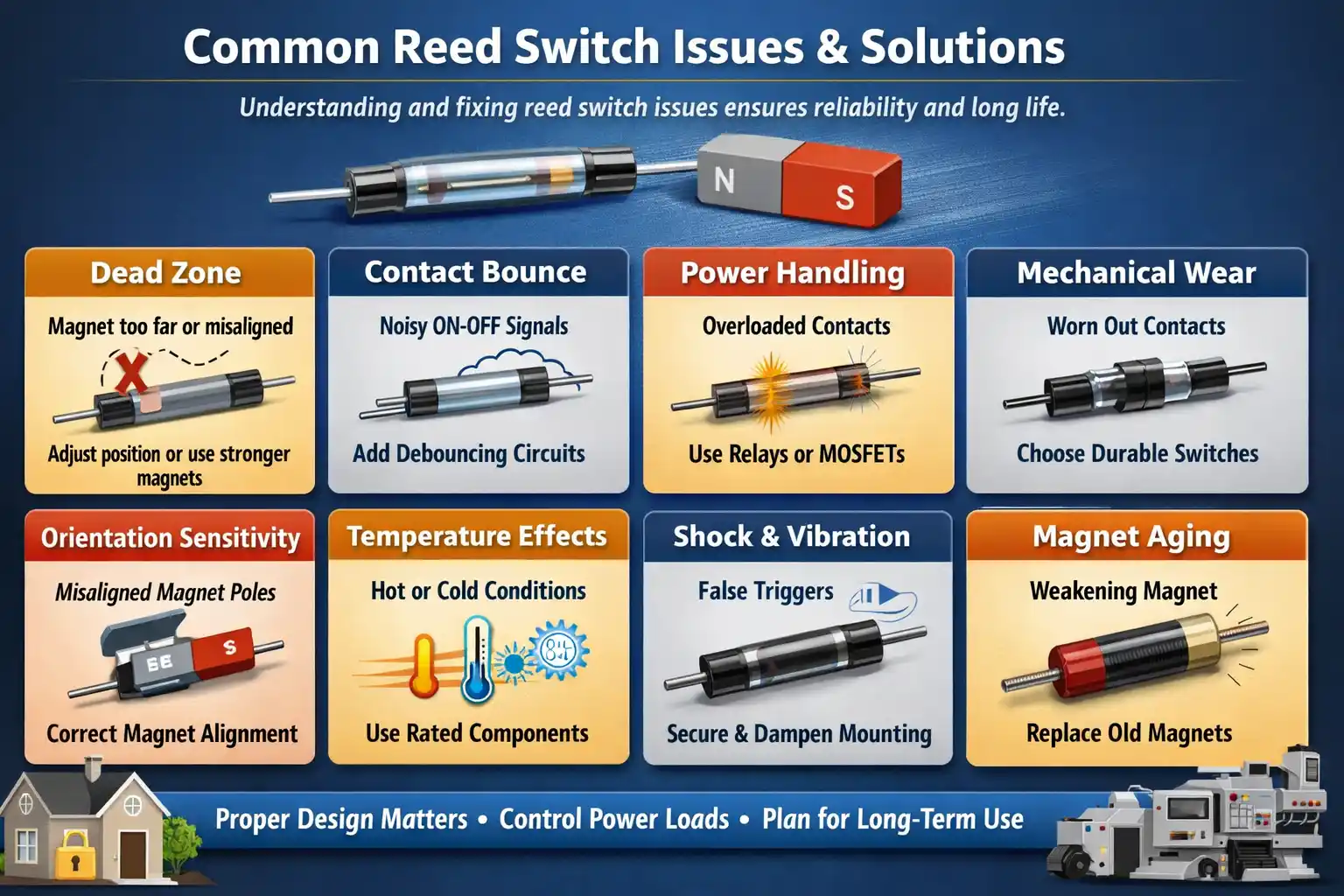

Common Reed Switch Issues and How to Solve Them
|
Issue |
Why It Happens |
Fix / Solution |
Prevention Tip |
|---|---|---|---|
|
Dead Zone |
Magnet is too far or misaligned |
Adjust magnet position; use stronger or multi-pole magnets |
Design with proper alignment margin and pull-in distance |
|
Contact Bounce |
Reeds bounce briefly when closing, sending multiple ON/OFF signals |
Use hardware/software debouncing or add a small capacitor |
Use reed switches with damping or add snubber circuits |
|
Limited Power Handling |
Too much voltage or current can weld reeds or cause pitting |
Use for low-power signals only; drive higher loads via a relay or MOSFET |
Follow manufacturer ratings; include protection circuits |
|
Mechanical Wear |
Repeated cycles under load wear down the contacts |
Choose high-durability types (dry, gas-filled, mercury-wetted) |
Minimize contact load; consider reed relays for heavy use |
|
Orientation Sensitivity |
Magnet poles misaligned with the reed, reducing activation |
Test and adjust magnet orientation during design |
Document orientation; enforce during assembly |
|
Temperature Effects |
Extreme hot or cold changes magnetic properties, affecting switching |
Use switches and magnets rated for operating temperatures |
Perform temperature tests to check reliability |
|
Shock & Vibration |
Physical shocks or vibration may cause false triggers |
Mount with damping materials; secure housing |
Use vibration-resistant brackets or potting |
|
Magnet Aging |
Magnets lose strength over time |
Use high-quality NdFeB or Samarium–Cobalt magnets; replace as needed |
Plan preventive maintenance; check magnet life expectancy |
Key Takeaways
Dead zones aren’t the only issue—contact bounce, limited power, and wear are also common.
Proper design matters—correct alignment, switch type, and protective circuits make systems reliable.
Plan for long-term use—consider temperature, vibration, and magnet aging to reduce failures.
Common Magnetic Reed Switch Issues and How to Fix Them
Magnetic reed switches rarely encounter performance challenges that may look minor at first but can majorly affect reliability if not understood properly on time. Each issue rises due to a specific mechanical, magnetic, or environmental factor, and addressing them requires a combination of correct installation, smart design decisions, and preventive planning. Below is an expanded, descriptive explanation of every common reed switch issue so that you can understand not only the problem but the deeper technical reasoning behind it and the practical steps which needed to make sure the long-term stability of reed switches.
1. Dead Zone (Non-activation Area)
A dead zone is one of the most regularly experienced challenges in reed switch applications, and it rises when the magnet fails to activate the switch in definite positions. This often surprises installers because magnetic reed switches appear very simple; however, their functionality depends heavily on the strength, direction, and reach of the magnetic field. A dead zone typically forms when the magnet is too far from the switch or when it is placed in a way that the magnetic flux does not align with the sensitive axis of the reeds. Even a few degrees of misalignment or a slight shift in distance can prevent activation, especially in furniture installations like wardrobes, almirahs, drawers, and smart storage systems where space is limited and tolerances vary.
The solution to a dead zone usually lies in repositioning the magnet so that its field lines directly interact with the reeds inside the glass capsule. Using a stronger magnet can also help, especially in situations where wooden panels, hinges, or door gaps increase the distance between the magnet and the switch. Multi-pole magnets are another practical solution because they provides a complete and more uniform activation zone. Preventing dead zones completely requires planning during the design stage — this includes choosing the correct pull-in value, providing installation margin for alignment errors, and testing the switch’s activation from multiple angles before finalizing placement in furniture systems or industrial products.
2. Contact Bounce
Contact bounce is a natural behavior in reed contact switch because the metal reeds physically touch each other when exposed to a magnetic field. Instead of closing quickly and staying closed, the reeds vibrate slightly upon impact, causing a rapid series of tiny ON-OFF pulses. Electronic circuits explain these pulses as multiple activations, which results in false triggers, random switching, or erratic responses. This issue becomes particularly noticeable in smart wardrobes, drawers with LED lighting, counting devices, microcontroller inputs, and any system that depends on clean digital signals.
Fixing contact bounce typically requires adding a debouncing mechanism. This can be done at the hardware level using a small capacitor, an RC filter, or a Schmitt trigger input that smooths out the noisy transition. Alternatively, microcontrollers can use software debouncing, which ignores quick fluctuations and registers only stable signals. Modern reed switches with built-in damping can also reduce bounce, but most designs still depends on an external electronic solutions. The key to preventing bounce problems is simply acknowledging that they are unavoidable in mechanical contact systems and designing the electronics with proper debounce handling from the very beginning.
3. Limited Power Handling
Reed switches are designed for signal-level operations, not for switching heavy electrical loads. Their thin metal contacts can easily get damaged if exposed to high current, high voltage, or inductive loads. When this happens, the contacts may pit, arc, or even weld together, leading to permanent failure. This limitation becomes important in applications where the switch directly controls LEDs, motors, solenoids, relays, or even small household loads inside furniture.

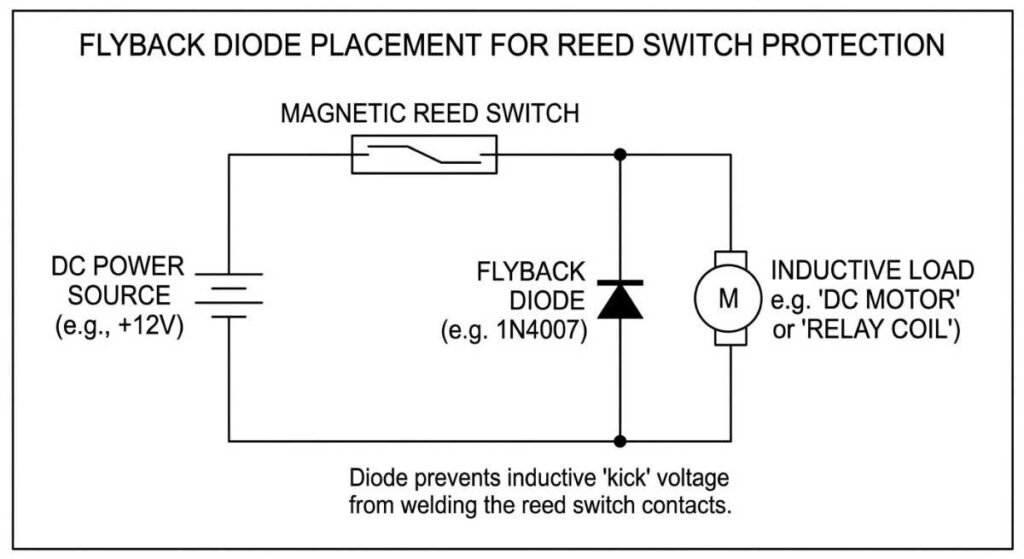

The best way to fix this issue is to make sure the reed switch handles only a small, safe amount of current. For any higher load, a mediator component such as a relay, MOSFET, or transistor driver should be used. This makes sure that the reed switch works purely as a sensing device rather than as a load-bearing contact. Proper surge suppression, flyback diodes, and dedicated protection circuits further increase the reliability. Preventing power-handling failures is simply a matter of respecting manufacturer ratings and makes sure the system that never exposes the reed to electrical stress beyond its capability.
4. Mechanical Wear
Although reed switches are sealed and appear maintenance-free, they still undergo mechanical stress every time they activate. The reeds bend slightly during each cycle, and over time this repeated flexing causes metal fatigue, wear, and a gradual decline in performance. Environments with high switching frequency — such as commercial cabinets, automated drawers, industrial machines, or repetitive motion sensors — experience this problem more quickly. If the reeds are switching electrical loads rather than signal currents, the wear can accelerate dramatically.
Fixing mechanical wear usually involves selecting the correct reed switch type for the intended application. Gas-filled reeds provide better longevity because the inert gas reduces oxidation and arcing, while mercury-wetted reeds provide a smooth operation in very specialized conditions. Reducing load on the contacts also extends lifespan. To prevent mechanical wear altogether, it is important to avoid extra rapid cycling and to use reed relays instead of bare reed switches when continuous heavy switching is expected.
5. Orientation Sensitivity
One of the lesser-known characteristics of reed switches is their sensitivity to the direction of magnetic flux. Even if the magnet is strong enough and the distance seems correct, the switch may fail to activate if the magnet’s poles are not aligned properly. This often happens in furniture installations when installers place the magnet horizontally instead of vertically or when the magnet slides during door movement. Because reed switches respond to magnetic field directionality, incorrect orientation leads to unreliable switching and inconsistent results.
Fixing this issue typically involves rotating or reorienting the magnet so that the correct pole faces the reed switch. Carrying out alignment tests during installation can save major troubleshooting later. Preventing orientation problems requires proper documentation, assembly instructions, and strict adherence to the manufacturer’s recommended mounting method. This is especially important for mass-produced furniture, modular cabinets, smart wardrobes, and high-volume sensor installations.
6. Temperature Effects
Temperature changes can affect both the reed switch and the magnet used to activate it. High temperatures weaken magnetic strength, increase the reed’s resistance, and alter activation thresholds. Low temperatures may cause brittleness or a shift in magnetic switch properties. In environments like cold storage units, warehouse freezers, industrial heaters, or cabinets exposed to direct sunlight, temperature variations can lead to missed activations or inconsistent switching.
Fixing temperature-related issues starts with choosing components that are rated for the operating conditions. Both the magnet and the reed switch must be able to withstand expected temperature ranges without losing performance. Testing the device at extreme temperatures is important for makes sure the long-term reliability. Prevention is simple: never use standard magnets or low-grade reeds in hard environments; always use temperature-stable materials such as neodymium magnets or specialized reed switches designed for extreme conditions.
7. Shock and Vibration
Reed switches are sensitive to vibration because their internal components are slender and lightweight. When exposed to vibration — either from machinery, motors, door impact, or environmental movement — the reeds may momentarily touch each other even without magnetic activation. This results in false triggers, flickering signals, or unpredictable operation. This issue frequently appears in industrial environments, noisy workshops, transport vehicles, and machinery panels.
Fixing vibration-related problems involves improving the mounting method. Using damping materials, foam padding, anti-vibration brackets, or potting compounds can majorly reduce unwanted mechanical movement. Securing the switch housing firmly also minimizes shock effects. Preventing these issues in the first place requires avoiding installation near motors, compressors, moving parts, or heavy industrial equipment whenever possible.
8. Magnet Aging
Magnets may lose strength over time due to heat exposure, environmental conditions, or material degradation. Ferrite magnets lose intensity faster, while high-quality neodymium and samarium-cobalt magnets retain performance for much longer periods. As the magnetic strength decreases, the reed switch may fail to activate at normal distances, creating operational inconsistencies.
Fixing magnet aging is straightforward — replace the magnet with a new one of the same or higher grade. Preventing this issue requires selecting premium magnets and incorporating preventive maintenance schedules for long-term installations, especially in industrial or commercial environments where reliability is important.
Applications
- Home security systems
- Wardrobe and almirah lighting
- Drawer automation
- Industrial machinery
- Smart furniture
- Access control
- Energy-saving systems
Advantages
- Simple and reliable operation
- No power required for sensing
- Long life due to sealed contacts
- Compact size and easy installation
- Excellent electrical isolation
Limitations
- Sensitive to alignment
- Limited current capacity
- May exhibit contact bounce
- Affected by temperature and vibration
- Requires proper magnet orientation
Conclusion
Magnetic reed switches are dependable devices, but like all electromechanical components, they require thoughtful integration and proper design practices. Issues such as dead zones, contact bounce, orientation sensitivity, mechanical wear, and environmental effects can majorly influence performance. By understanding the root causes behind these challenges and applying smart preventive design, you can build systems that perform consistently and remain reliable for years. With better alignment, correct load handling, protective circuits, and quality magnets, reed switches can provide exceptional performance in both consumer and industrial environments.
At 1 LEAP Technologies, our focus is to provide high-quality magnetic reed switches and sensor solutions engineered for real-world reliability. Whether you are building smart furniture, automation equipment, or industrial safety systems, our Magnetic Reed Sensor makes sure the consistent and long-lasting performance.
FAQ – Magnetic Reed Switch Issues
A dead zone occurs when the magnet is too far or misaligned with the reed switch, preventing it from activating. Correct alignment or stronger magnets usually solve this.
When the reeds close, they may briefly bounce, sending multiple ON/OFF signals. Using hardware/software debouncing or a small capacitor reduces this effect.
No. Exceeding their rated voltage or current can damage the contacts. Use relays or MOSFETs for higher loads.
Select durable reed types (dry, gas-filled, mercury-wetted), minimize contact load, and plan for heavy-duty cycling with reed relays if needed.
Yes, permanent magnets may lose strength gradually, affecting reliability. Use high-quality magnets and schedule preventive maintenance.
Extreme temperatures can change magnetic properties, and heavy vibrations can trigger false activations. Use rated switches, proper mounting, and damping materials.
Conclusion
Magnetic reed switches may seem simple, but small factors like magnet position, contact bounce, and wear can impact performance. By understanding these issues and taking preventive steps, you can build more reliable automation, security, and industrial systems. With proper alignment, debouncing, and quality components, these tiny switches deliver dependable results for years.
At 1 LEAP Technologies, we focus on providing high-quality sensor solutions, including magnetic reed switches, to help businesses and engineers design reliable and efficient systems.
