1L-MSM-114 Wide Gap Reed Switch – Datasheet & Application Guide:
1. Product Overview 1L-MSM-114 Wide Gap Reed Switch:
The 1L-MSM-114 Wide Gap Reed Switch is a high-performance reed switch designed for non-contact position sensing. It features a hermetically sealed reed switch that activates upon exposure to a magnetic field. Built for durability and reliability, this switch excels in security, automation, and industrial applications.
1L-MSM-114 Wide Gap Reed Switch
Model No. 1L-MSM-114
Varients of 1L-MSM-114:
- 1L-MSM-114 NO
- 1L-MSM-114T NO
Technical Specifications:
Switch Type (1L-MSM-114) | NO | NO |
|---|---|---|
| Voltage | 200 VDC | 200 VDC |
| Current | 0.5 A | 0.5 A |
| Power | 10 W | 10 W |
| Operating Gap (min.) | 50 | 50 |

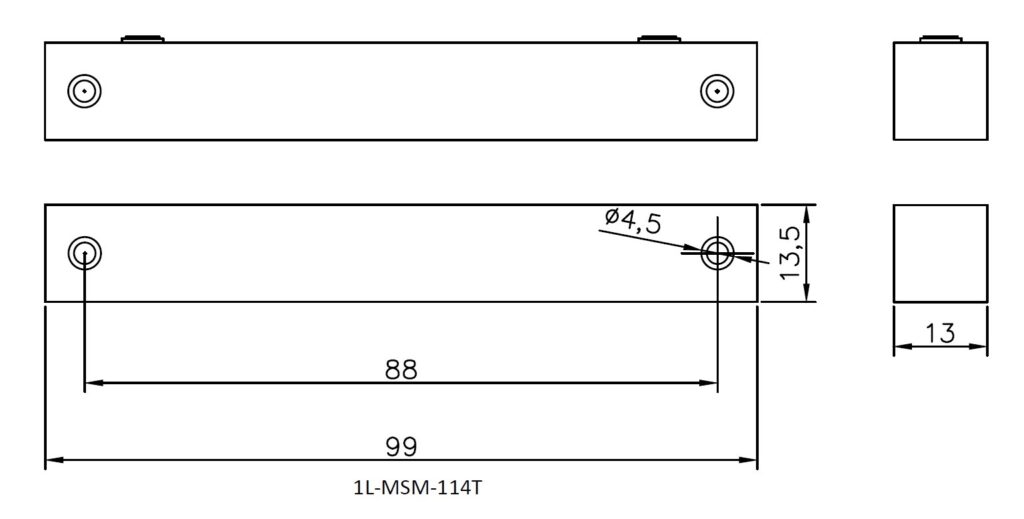

| Dimensions (LxWxH) | 99 x 13.5 x 13 | 99 x 13.5 x 13 |
| Wire Type | PVC | Terminal for Connection |
| * Wire Length (std.) | *4' | N.A. |
| Core Size | 2 Core 22 AWG | N.A. |
| Operating Temp. | -20°C to +70°C | -20°C to +70°C |
| Storage Temp. | -40°C to +85°C | -40°C to +85°C |
| Humidity | Up to 95% non-condensing | Up to 95% non-condensing |
| Housing Material | ABS Plastic | ABS Plastic |
| Mounting Type | Screw Mount | Screw Mount |
| Mechanical Life | Over 10 million cycles | Over 10 million cycles |
| Contact Resistance | 0.1 Ω | 0.1 Ω |
| Housing Colour | Grey | Grey |
| Wire Colour | Grey | N.A. |
* Wire length customizable
1L-MSM-114 Varients:
1L-MSM-114 NO
1L-MSM-114 NO
2. Applications:
Security & Access Control:
- Protects doors and windows by detecting unauthorized entry in alarm systems.
- Enhances security for vaults, safes, and storage enclosures by monitoring access.
Industrial Automation:
- Identifies machine component positions to ensure proper operation and safety compliance.
- Supports non-contact sensing in assembly lines and robotic systems, reducing mechanical wear.
Home & Smart Automation:
- As soon as doors or cabinets open, the lighting systems automatically activate, thereby ensuring optimal visibility and convenience.
- Integrates seamlessly with IoT-based security systems for real-time monitoring.
Medical & Healthcare Equipment:
- Ensures precise positioning in X-ray machines and MRI scanners.
- Plays a crucial role in lab testing devices that require accurate sensing.
Consumer Electronics & Appliances:
- Detects lid and door positions in refrigerators, microwaves, and dishwashers for enhanced functionality.
- Helps optimize power consumption in battery-operated devices by enabling smart switching.
3. Installation & Mounting Guide for Mini Flange Mount Reed Switch
- Prepare the Surface: Clean the mounting area to ensure a secure attachment.
- Secure the Reed Switch: Fix the mini flange mount switch onto a stable surface using screws or adhesive.
- Position the Magnet: Mount the accompanying magnet on the moving part, such as a door or panel.
- Ensure Proper Alignment: Align the switch and magnet correctly so that the circuit operates as intended when the magnet moves away.
- Test the Installation: Check the functionality to confirm proper operation before finalizing the setup.
4. Advantages Over Other Technologies:
Non-contact operation eliminates physical wear and tear, extending lifespan.
Highly reliable design supports millions of switching cycles.
Compact and versatile construction makes it suitable for tight spaces.
Zero power consumption in passive mode makes it perfect for battery-powered applications.
Link to Other Surface Mount Models:
- 1L-MSM-111: Surface Mount with Wire Leads
- 1L-MSM-112: Side Flange Mount with Wire Leads
- 1L-MSM-113: Flange Mount Magnetic Switch
- 1L-MSM-115: Miniature Flange Mount with Side Wire Leads
- 1L-MSM-116: Flange Mount with Side Wire Leads
- 1L-MSM-117: Surface Mount with Adhesive Tape
- 1L-MSS-101: Special Type Magnetic Switch
Each model is designed for easy installation and offers unique features suited to various applications.
