1L-MSM-113 Flange Mount Magnetic Reed Switch – Datasheet & Application Guide:

1. Product Overview 1L-MSM-113 Flange Mount Reed Switch:

The 1L-MSM-113 Flange Mount Reed Switch is a high-performance reed switch designed for non-contact position sensing. It features a hermetically sealed reed switch that activates upon exposure to a magnetic field. Built for durability and reliability, this switch excels in security, automation, and industrial applications.

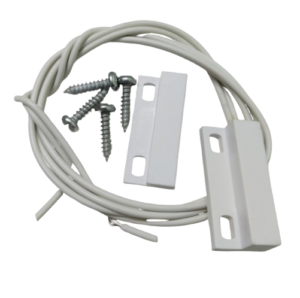

1L-MSM-113 Flange Mount Magnetic Reed Switch

Model No. 1L-MSM-113

Varients of 1L-MSM-113:

1. 1L-MSM-113  NO
2. 1L-MSM-113  NC

Note: 3 Wire Changeover Switch 1L-MSM-113 NO/NC available on request

1L-MSM-113 Varients:

2. Applications:

Security & Access Control:

• Protects doors and windows by detecting unauthorized entry in alarm systems.
• Enhances security for vaults, safes, and storage enclosures by monitoring access.

Industrial Automation:

• Identifies machine component positions to ensure proper operation and safety compliance.
• Supports non-contact sensing in assembly lines and robotic systems, reducing mechanical wear.

Home & Smart Automation:

• As soon as doors or cabinets open, the lighting systems automatically activate, thereby ensuring optimal visibility and convenience.
• Integrates seamlessly with IoT-based security systems for real-time monitoring.

Medical & Healthcare Equipment:

• Ensures precise positioning in X-ray machines and MRI scanners.
• Plays a crucial role in lab testing devices that require accurate sensing.

Consumer Electronics & Appliances:

• Detects lid and door positions in refrigerators, microwaves, and dishwashers for enhanced functionality.
• Helps optimize power consumption in battery-operated devices by enabling smart switching.

3. Installation & Mounting Guide for Mini Flange Mount Reed Switch

1. Prepare the Surface: Clean the mounting area to ensure a secure attachment.
2. Secure the Reed Switch: Fix the mini flange mount switch onto a stable surface using screws or adhesive.
3. Position the Magnet: Mount the accompanying magnet on the moving part, such as a door or panel.
4. Ensure Proper Alignment: Align the switch and magnet correctly so that the circuit operates as intended when the magnet moves away.
5. Test the Installation: Check the functionality to confirm proper operation before finalizing the setup.

4. Advantages Over Other Technologies:

Non-contact operation eliminates physical wear and tear, extending lifespan.
Highly reliable design supports millions of switching cycles.
Compact and versatile construction makes it suitable for tight spaces.
Zero power consumption in passive mode makes it perfect for battery-powered applications.
